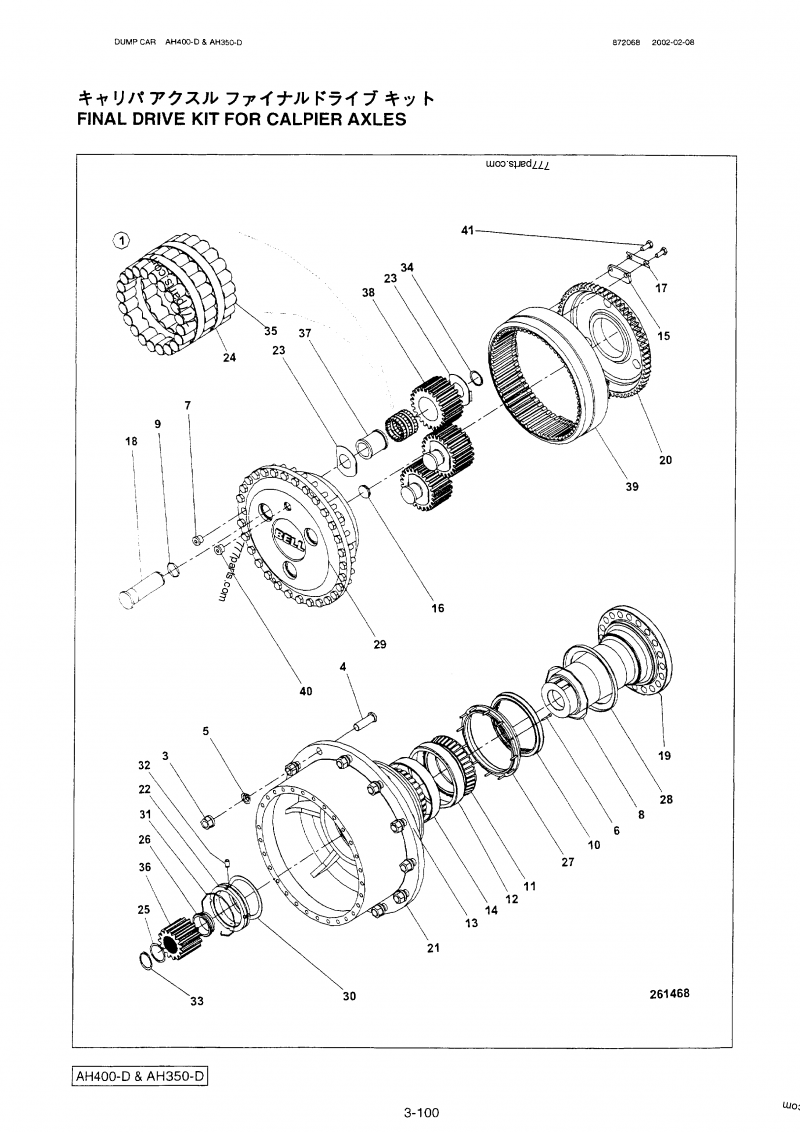

HITACHI AH400-D FINAL DRIVE KIT FOR CALPIER AXLES
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 26***8B | KIT, FINAL DRIVE, 5.2, 23T, DISC | |
| 2 | 10***4B | . SCREW, HEXHD 8.8, M14X40 | |
| 3 | 10***0B | . NUT, WHEEL (COLLAR) 26TON CLASS 8 | |
| 4 | 10***1B | . STUD, WHEEL26TONAXLEMF22X1.5X65 | |
| 5 | 10***1B | . WASHER, M22 WHEEL STUD | |
| 6 | 10***7B | . CAPSCREW, SOCHD 12.9, M5X30 | |
| 7 | 20***6B | . PLUG, MAGNETIC, M22X1.5 | |
| 8 | 14***0B | . O RING, 3A0D170AON70 | |
| 9 | 14***2B | . O RING, PLANET PIN | |
| 10 | 14***9B | . SEAL, CASSETTE, 170X200X17,5 FPM | |
| 11 | 15***0B | . CONE, BEARING, 48684 | |
| 12 | 15***1B | . CUP, BEARING, 48620 | |
| 13 | 15***2B | . CONE, BEARING, 67390 | |
| 14 | 15***3B | . CUP, BEARING, 67322 | |
| 15 | 16***0B | SOLID RING ASSEMBLY | |
| 16 | 16***4B | . PLUG, BRONZE THRUST | |
| 17 | 16***0B | SOLENOID*12V | |
| 18 | 16***8B | . PIN, PLANET GEAR | |
| 19 | 16***0B | . SHAFT, STUB, MACHINED | |
| 20 | 16***1B | . RING GEAR CARRIER | |
| 21 | 16***7B | . HUB, MACHINED | |
| 22 | 16***2B | . NUT, LOCK, HUB | |
| 23 | 16***8B | . PLANET, THRUST | |
| 24 | 16***7B | . SPACER, BRG, 4:1 | |
| 25 | 16***1B | . SPACER, CIRCLIP | |
| 26 | 16***8B | . WASHER, THRUST, 20 TON AXLE | |
| 27 | 16***0B | . CARRIER, SEAL, 20T AXLE LABRINT | |
| 28 | 16***1B | . LABRINTH, 20T SEAL CARRIER | |
| 29 | 16***1B | . PLANET CARRIER HD | |
| 30 | 19***5B | . WASHER:LOCKNUT | |
| 31 | 20***4B | . CLIP-SPRING | |
| 32 | 20***5B | . PIN:LOCK NUT, ROLLER DIA8X14L | |
| 33 | 20***7B | . CIRCLIP EXT-SIDESHAFT, NB 50 | |
| 34 | 20***8B | . CIRCLIP EXT-PLANET PIN, NB 45 | |
| 35 | 20***2B | . ROLLER, CYLINDRICAL, RC 10X14C | |
| 36 | 20***8B | . SUNGEAR, HD, 5,2.1 20T ZF | |
| 37 | 20***9B | . RACE, INNER FOR PLANET 206606B | |
| 38 | 20***6B | . PLANET GEAR, HD, 5,2:1 20T ZF | |
| 39 | 20***7B | . RINGGEAR, 5,2:1 20T ZF | |
| 40 | 20***6B | . PLUG, M22X1.5 | |
| 41 | 10***9B | . SCREW, HEXHD SAE5, UNF 5/16"X3/4 |
