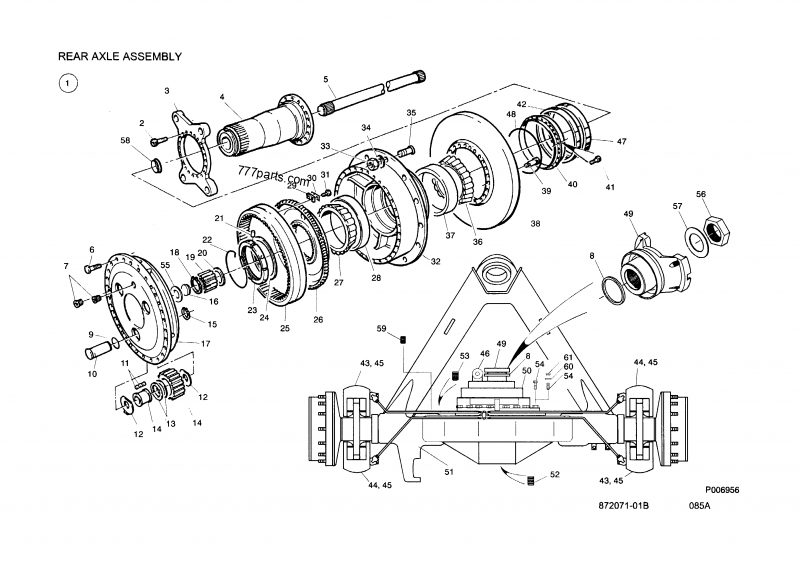

HITACHI AH400 REAR AXLE ASSEMBLY
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 34***6B | REAR AXLE ASSEMBLY STD (RATIO 3,7: 1); USED ON AH350 MACHINES ONLY | 1 |
| 1 | 34***4B | REAR AXLE ASSEMBLY STD (RATIO 4,1: 1); USED ON AH400/AH400 (M) MACHINES ONLY | 1 |
| 2 | 10***1B | SCREW*METRIC 14X50 - | 28 |
| 3 | 19***9B | . HOLDER, CALIPER | 2 |
| 4 | 16***0B | . SHAFT, STUB | 2 |
| 5 | 20***5B | . SHAFT, SIDE | 2 |
| 6 | 10***4B | . BOLT | 60 |
| 7 | 12***6B | . PLUG | 4 |
| 8 | 16***1B | . LABYRINTH | 2 |
| 9 | 14***2B | . O-RING | 6 |
| 10 | 16***8B | . PIN, PLANET | 6 |
| 11 | 20***2B | . ROLLER, CYLINDERICAL | 378 |
| 12 | 16***8B | . PLANET, THRUST | 12 |
| 13 | 20***6B | . PINION, PLANET | 6 |
| 14 | 16***7B | . SPACER | 12 |
| 15 | 22***4B | . PLUG | 1 |
| 16 | 20***8B | . CIRCLIP, EXTERNAL | 6 |
| 17 | 16***4B | . PLUG, THRUST, BRONZE | 2 |
| 18 | 16***1B | SOCKET HEAD PLUG 1/2 NPT | 2 |
| 19 | 20***7B | . CIRCLIP, EXTERNAL, SHAFT, SIDE | 2 |
| 20 | 20***3B | . PINION, SUN | 2 |
| 21 | 16***8B | . WASHER, THRUST, GEAR, SUN | 2 |
| 22 | 20***5B | . PIN, NUT, LOCK | 2 |
| 23 | 20***4B | . CLIP, SPRING | 2 |
| 24 | 16***2B | . NUT, LOCK, HUB | 2 |
| 25 | 19***5B | . WASHER, HEAT TREATED | 2 |
| 26 | 20***2B | SORBTEX WASHER | 2 |
| 27 | 16***1B | . CARRIER, GEAR, RING | 2 |
| 28 | 15***2B | . CONE, BEARING | 2 |
| 29 | 15***3B | . CUP, BEARING | 2 |
| 30 | 16***0B | ANEROID | 8 |
| 31 | 16***0B | SOLENOID*12V | 8 |
| 32 | 10***9B | . SCREW, SET, HEX | 16 |
| 33 | 16***7B | . HUB | 1 |
| 34 | 10***0B | . NUT, WHEEL | 24 |
| 35 | 10***1B | . WASHER, STUD, WHEEL | 24 |
| 36 | 10***1B | . STUD, WHEEL | 24 |
| 37 | 15***0B | . CONE, BEARING | 2 |
| 38 | 15***1B | . CUP, BEARING | 2 |
| 39 | 16***4B | . DISC | 2 |
| 40 | 10***1B | SCREW*METRIC 14X50 - | 60 |
| 41 | 16***0B | . CARRIER, SEAL | 2 |
| 42 | 10***7B | SCREW*METRIC 14X50 - | 24 |
| 43 | 14***9B | . SEAL, OIL, CASSETTE | 2 |
| 44 | 29***4B | . CALIPER, BRAKE, LH | 1 |
| 45 | 29***5B | . CALIPER, BRAKE, RH | 1 |
| 46 | 14***0B | SCREW*SPECIAL | 2 |
| 47 | 10***6B | SCREW*METRIC 14X50 -; USED ON 409844.00,409855.00,409866.00 MACHINES ONLY | 12 |
| 48 | 10***7B | SCREW*METRIC 14X50 - | 6 |
| 49 | 18***6B | . BLADE | 2 |
| 50 | 20***7B | . YOKE; INCLUDES ITEMS 61AND 62 | 1 |
| 51 | 31***6B | . DIFFERENTIAL ASSY; USED ON AH350 MACHINES ONLY | 1 |
| 51 | 31***0B | . DIFFERENTIAL ASSY; USED ON AH400 AND AH400 (M) MACHINES ONLY | 1 |
| 52 | 18***9B | . HOUSING, BANJO, REAR | 1 |
| 53 | 12***4B | SHIM - .005 | 1 |
| 54 | 18***5B | . SCRAPER ASSY | 1 |
| 55 | 10***7B | SCREW*METRIC 14X50 - | 12 |
| 56 | 29***6B | . SET CALIPER FIXING PARTS | 2 |
| 57 | 21***0B | . ACTUATOR, DIFF LOCK | 1 |
| 58 | 17***5B | . BRACKET | 1 |
| 59 | 10***1B | . WASHER, SPACER | A/R |
| 60 | 20***7B | . PLUG | 1 |
| 61 | 22***0B | . SPEEDY SLEEVE; INCLUDED IN ITEM 50 | 1 |
| 62 | 16***9B | . SLINGER; INCLUDED IN ITEM 50 | 1 |
| 63 | 12***7B | . PLUG | 1 |
| 64 | 10***0B | RADIATOR - LESS COOLER & SHROUD - 660 | 1 |
| 65 | 22***9B | . NUT, PINION | 1 |
| 66 | 22***2B | . WASHER | 1 |
| 67 | 10***9B | SPACER - 52779-52889,52891-52896,CI9147-CI9158; USED ON 409844.01,409855.01,409866.01 MACHINES ONLY | 8 |
| 68 | 10***0B | RETAINING NUT; USED ON 409844.01,409855.01,409866.01 MACHINES ONLY | 12 |
| 69 | 10***8B | . NUT; USED ON 409844.01, 409855.01,409866.01 MACHINES ONLY | 12 |
| 70 | 10***5B | SPACER - 52779-52889,52891-52896,CI9147-CI9158; USED ON 409844.01,409855.01,409866.01 MACHINES ONLY | 4 |
