CONTROLS, ENGINE | 8035ZTS | AGRICULTURAL | JCB

JCB 8035ZTS CONTROLS, ENGINE

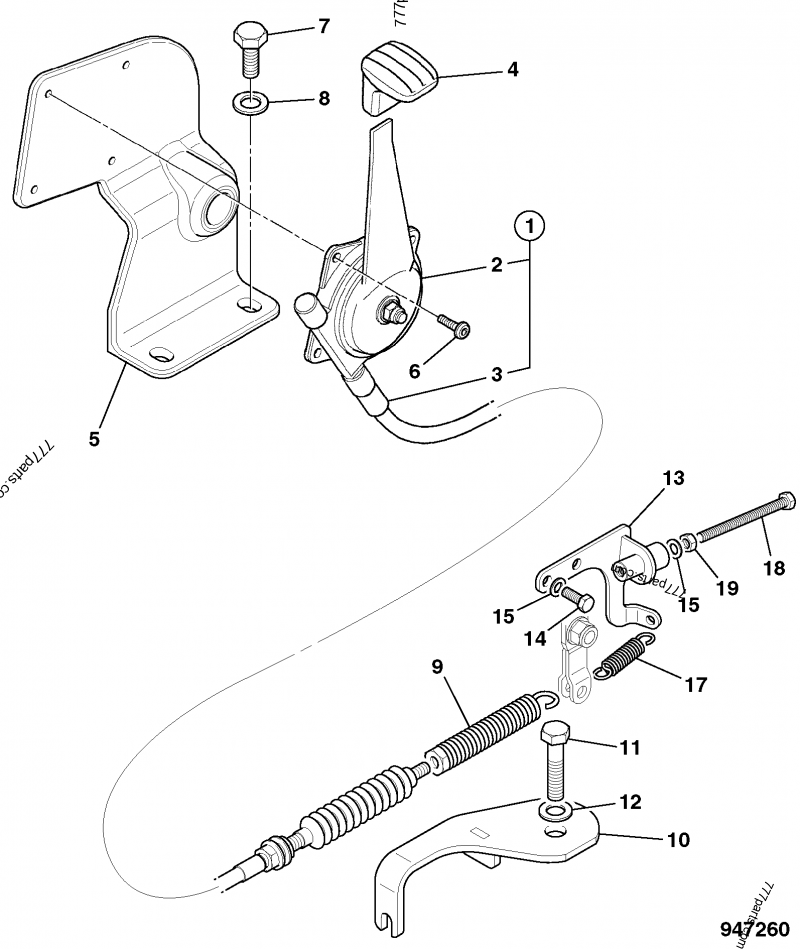

#	Part No.	Description	Qty
1	91*****57	Cable, throttle assembly	1
1	91*****57	Cable, throttle assembly	1
2	91*****02	Lever, assembly	1
2	91*****02	Lever, assembly	1
3	91*****88	throttle cable	1
3	91*****88	throttle cable	1
4	33*****75	Knob, Controls, black; Replaced by 331/30884, See SAN 13712	1
4	33*****75	Knob, Controls, black; Replaced by 331/30884, See SAN 13712	1
5	58*****36	Bracket, Throttle	1
5	58*****36	Bracket, Throttle	1
6	82*****88	Screw, button head, M5 x 12	4
6	82*****88	Screw, button head, M5 x 12	4
7	13******7Z	Bolt, M10x25	2
7	13******7Z	Bolt, M10x25	2
8	14******8Z	Washer, Plain M10; SAN 23620 REF DAVE BICKERTON CONFIRMS IDENTIC, AL TO 335/55418Z RATIONALISE PARTS	2
8	14******8Z	Washer, Plain M10; SAN 23620 REF DAVE BICKERTON CONFIRMS IDENTIC, AL TO 335/55418Z RATIONALISE PARTS	2
9	81*****89	Spring	1
9	81*****89	Spring	1
10	33*****84	Bracket, throttle reaction	1
10	33*****84	Bracket, throttle reaction	1
11	13******4D	Bolt, M12 x 60mm long	1
11	13******4D	Bolt, M12 x 60mm long	1
12	14******9D	Washer, M12	1
12	14******9D	Washer, M12	1
13	33*****19	Bracket, Throttle Stop	1
13	33*****19	Bracket, Throttle Stop	1
14	13******3D	Setscrew	2
14	13******3D	Setscrew	2
15	14******6D	Washer, M6 hardened	2
15	14******6D	Washer, M6 hardened	2
17	81*****01	Spring	1
17	81*****01	Spring	1
18	13******7D	Bolt, M6 X 75 Hex HD	1
18	13******7D	Bolt, M6 X 75 Hex HD	1
19	13******1D	Nut, plain	1
19	13******1D	Nut, plain	1
99	33*****59	Kit-engine, Assembly	1
99	23*****58	G.A., FLOOR PLATE ASSY, MINI EXCAVATORS	1
99	33*****22	G.A, POWER UNIT (8035)	1
99	33*****56	Unit, Power 8025 ZTS	1
99	33*****48	G.A, POWER UNIT 8030ZT	1
99	33*****59	Kit-engine, Assembly	1
99	23*****58	G.A., FLOOR PLATE ASSY, MINI EXCAVATORS	1
99	33*****22	G.A, POWER UNIT (8035)	1
99	33*****56	Unit, Power 8025 ZTS	1
99	33*****48	G.A, POWER UNIT 8030ZT	1
