ATTACHMENTS | 407FM | AGRICULTURAL | JCB

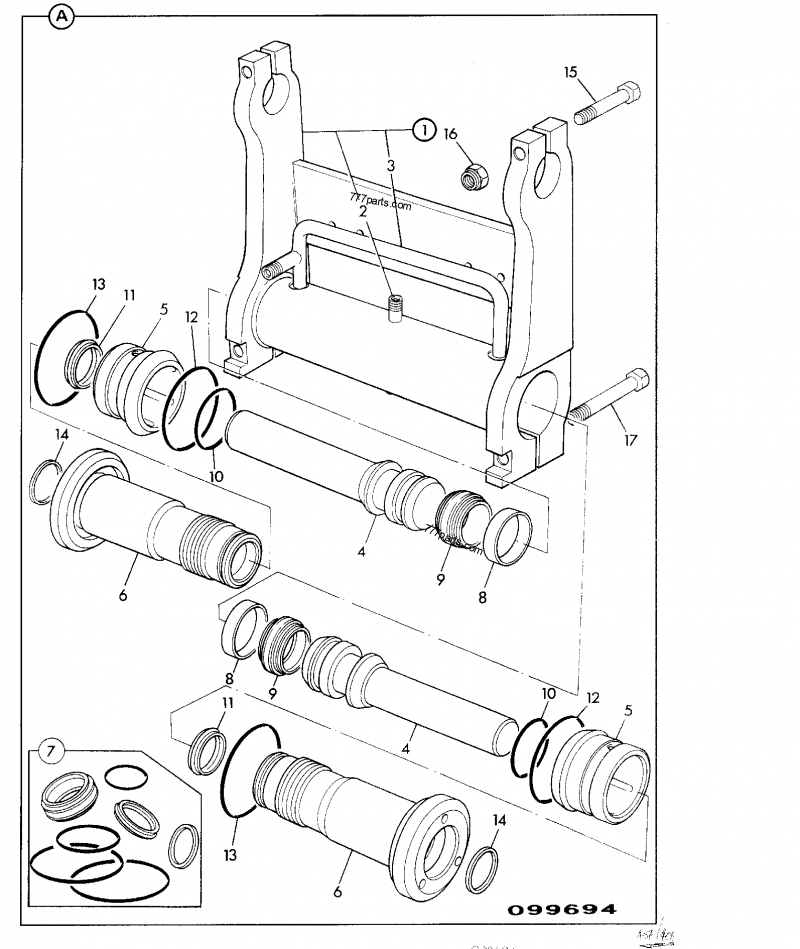

JCB 407FM ATTACHMENTS

#	Part No.	Description	Qty
0	51*****00	Quickhitch, complete	1
0	82*****66	O Ring	1
0	51*****00	Quickhitch, complete	1
0	82*****66	O Ring	1
1	26*****00	Frame, quickhitch	1
1	26*****00	Frame, quickhitch	1
2	26*****01	Bar, stop	1
2	26*****01	Bar, stop	1
3	51*****00	Pipe, feed, outer	1
3	51*****00	Pipe, feed, outer	1
4	26*****03	Piston	2
4	26*****03	Piston	2
5	80*****03	Bush	2
5	80*****03	Bush	2
6	27*****59	Cap, end	2
6	26*****02	Cap, end	2
6	27*****59	Cap, end	2
6	26*****02	Cap, end	2
7	99*****86	Kit-seal	1
7	99*****86	Kit-seal	1
8	24*****03	bearing	1
8	24*****03	bearing	1
9	24*****29	Seal, piston head	2
9	24*****29	Seal, piston head	2
10	24*****18	O Ring	1
10	24*****18	O Ring	1
11	90*****00	Seal, Gland	1
11	90*****00	Seal, Gland	1
12	24*****14	O Ring	1
12	24*****14	O Ring	1
13	24*****29	O Ring	1
13	24*****29	O Ring	1
14	90*****00	Seal, Wiper	1
14	90*****00	Seal, Wiper	1
15	13******7Z	Bolt, M16 x 75mm	2
15	13******7Z	Bolt, M16 x 75mm	2
16	13******3Z	Nut, M16	4
16	13******3Z	Nut, M16	4
17	13******0Z	Bolt, M16x100	2
17	13******0Z	Bolt, M16x100	2
