MAIN MACHINE ELECTRICS | 425 | AGRICULTURAL | JCB

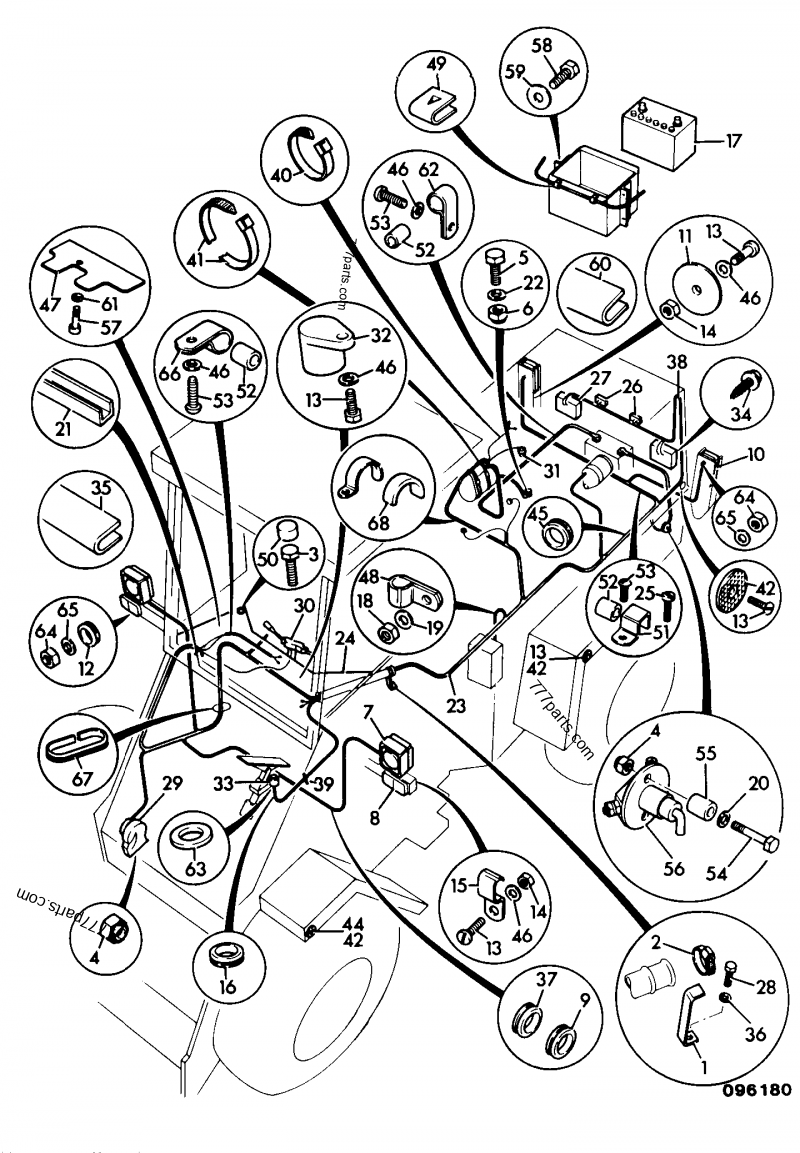

JCB 425 MAIN MACHINE ELECTRICS

#	Part No.	Description	Qty
0	70*****00	Harness	1
0	71*****00	Harness, number plate	1
0	72*****35	Bulb, 24v 5W	1
0	70*****00	Harness	1
0	71*****00	Harness, number plate	1
0	72*****35	Bulb, 24v 5W	1
1	26*****06	Bracket, umbilical support	1
1	26*****02	Bracket, unbilical support	1
1	25*****00	Bracket, support	1
1	26*****06	Bracket, umbilical support	1
1	26*****02	Bracket, unbilical support	1
1	25*****00	Bracket, support	1
2	22*****09	Clip, jubilee	2
2	22*****09	Clip, jubilee	2
3	13******6Z	Bolt	4
3	13******6Z	Bolt	4
4	13******3Z	Nut	3
4	13******3Z	Nut	3
5	13*****06	Bolt	1
5	13*****06	Bolt	1
6	13*****03	Nut	1
6	13*****03	Nut	1
7	M.*.S	Multi Supersession	1
7	70*****00	Light, body	1
7	70*****01	Harness, salvage	1
7	70*****00	Light, body	2
7	70*****00	Light, body; Supply 700/36600 + 700/17001	1
7	M.*.S	Multi Supersession	1
7	70*****00	Light, body	1
7	70*****01	Harness, salvage	1
7	70*****00	Light, body	2
7	70*****00	Light, body; Supply 700/36600 + 700/17001	1
8	70*****00	Light, front, without bulb; Replaced by 700/50027 + 721/10722, See SAN 12322	1
8	70*****00	Light, combination, front; Supply 700/30800,720/20036,720/20017	2
8	72*****17	Bulb, 24v 21W	1
8	72*****36	Bulb, 24v 5W	1
8	M.*.S	Multi Supersession	1
8	70*****00	Light, front, without bulb; Replaced by 700/50027 + 721/10722, See SAN 12322	1
8	70*****00	Light, combination, front; Supply 700/30800,720/20036,720/20017	2
8	72*****17	Bulb, 24v 21W	1
8	72*****36	Bulb, 24v 5W	1
8	M.*.S	Multi Supersession	1
9	24*****09	Grommet	1
9	24*****09	Grommet	1
10	70*****00	Light, rear combination; Replaced by 700/50026 + 721/10714, See SAN 12320	2
10	70*****00	Light, combination, 24 volt; Replaced by 700/30900, See SAN03938	2
10	70*****00	Light, rear combination; Replaced by 700/50026 + 721/10714, See SAN 12320	2
10	70*****00	Light, combination, 24 volt; Replaced by 700/30900, See SAN03938	2
11	70*****00	Reflector, red	2
11	70*****00	Reflector, red	2
12	24*****05	Grommet, hole dia 12.7mm, panel thknss 5-6mm	2
12	24*****05	Grommet, hole dia 12.7mm, panel thknss 5-6mm	2
13	82*****48	Screw	11
13	82*****48	Screw	11
14	13******3Z	Nut	4
14	13******3Z	Nut	4
15	82*****07	Clip, cable	4
15	82*****07	Clip, cable	4
16	24*****09	Grommet	1
16	24*****09	Grommet	1
17	70*****00	Battery, wet charge, 655	2
17	72*****55	Battery, wet charge, 130Ah	2
17	70*****00	Battery, wet charge, 655	2
17	72*****55	Battery, wet charge, 130Ah	2
18	13*****01	Nut	6
18	13*****01	Nut	6
19	14******1Z	Washer	8
19	14******1Z	Washer	8
20	14******1Z	Washer	4
20	14******1Z	Washer	4
21	26*****00	Bracket, sealing	1
21	26*****00	Bracket, sealing	1
21	26*****00	Bracket, sealing	1
21	26*****00	Bracket, sealing	1
22	14******3Z	Washer, medium	2
22	14******3Z	Washer, medium	2
23	70*****00	Harness, main	1
23	71*****00	Harness, main	1
23	71*****00	Harness, main	1
23	70*****00	Harness, main	1
23	70*****00	Harness, main	1
23	71*****00	Harness, main	1
23	71*****00	Harness, main	1
23	70*****00	Harness, main	1
24	.	'See Remark'	1
24	.	'See Remark'	1
26	70*****00	Light, number plate	2
26	70*****00	Light, number plate; USE 700/11500x1 706/78200x1 720/20035x1	1
26	70*****00	Light, number plate	2
26	70*****00	Light, number plate, assembly	1
26	70*****00	Light, number plate	2
26	70*****00	Light, number plate; USE 700/11500x1 706/78200x1 720/20035x1	1
26	70*****00	Light, number plate	2
26	70*****00	Light, number plate, assembly	1
27	70*****00	Light, working, 24 volt	2
27	70*****00	Light, working, 24 volt	2
27	26*****02	Plate, adaptor	2
27	82*****22	Nut, 'U'	4
27	M.*.S	Multi Supersession	1
27	14*****02	Screw	4
27	72*****32	Bulb, H3 24v 70w	1
27	70*****00	Light, working, 12 volt	2
27	70*****00	Light, working, 24 volt	2
27	70*****00	Light, working, 24 volt	2
27	26*****02	Plate, adaptor	2
27	82*****22	Nut, 'U'	4
27	M.*.S	Multi Supersession	1
27	14*****02	Screw	4
27	72*****32	Bulb, H3 24v 70w	1
27	70*****00	Light, working, 12 volt	2
28	13*****04	Bolt	2
28	13*****04	Bolt	2
29	70*****00	Horn, 24V	1
29	70*****00	Horn, 24V	1
30	.	'See Remark'	1
30	.	'See Remark'	1
31	71*****00	Sender, water temperature	2
31	71*****00	Sender, water temperature	2
32	70*****00	Alarm, 24V	1
32	70*****00	Alarm	1
32	70*****00	Alarm, 24V	1
32	70*****00	Alarm	1
33	70*****00	Switch, brake	1
33	70*****00	Switch, micro, black top	1
33	70*****00	Switch, brake light	1
33	70*****00	Switch, brake, micro, red top	1
33	70*****00	Switch, brake	1
33	70*****00	Switch, micro, black top	1
33	70*****00	Switch, brake light	1
33	70*****00	Switch, brake, micro, red top	1
34	82*****22	Nut, 'U'	4
34	82*****22	Nut, 'U'	4
35	92*****00	Strip, edging	1
35	92*****00	Strip, edging	1
36	14*****06	Washer	2
36	14*****06	Washer	2
37	24*****13	Grommet	1
37	24*****13	Grommet	1
38	70*****00	Harness, engine cover	1
38	70*****00	Harness, engine cover	1
39	64*****17	Tube	41
39	64*****17	Tube	41
40	20*****07	Tie, cable - 100mm Long	4
40	20*****07	Tie, cable - 100mm Long	4
41	12*****03	Tie, cable, L=300mm x W=7.6mm	2
41	12*****03	Tie, cable, L=300mm x W=7.6mm	2
42	70*****00	Reflector, amber	6
42	70*****00	Reflector, amber	6
43	26*****01	Plug	4
43	26*****01	Plug	4
44	14*****02	Screw, No 8x1/2"	4
44	14*****02	Screw, No 8x1/2"	4
45	24*****14	Grommet	1
45	24*****14	Grommet	1
46	14******1Z	Washer, 2 BA	12
46	14******1Z	Washer, 2 BA	12
47	26*****02	Cover, harness	1
47	70*****00	Reflector, amber	6
47	26*****02	Cover, harness	1
47	70*****00	Reflector, amber	6
48	82*****64	Clip, 16mm	4
48	82*****64	Clip, 16mm	4
49	25*****01	Clip, cable	7
49	25*****01	Clip, cable	7
50	83*****46	Cap, protection	4
50	83*****46	Cap, protection	4
51	82*****99	Clip	1
51	82*****99	Clip	1
52	82*****73	Insert	8
52	82*****73	Insert	8
53	82*****71	Screw, 2BA x 3/8", round head slotted	8
53	82*****71	Screw, 2BA x 3/8", round head slotted	8
54	13*****12	Bolt	2
54	13******6Z	Bolt	2
54	13*****12	Bolt	2
54	13******6Z	Bolt	2
55	65*****89	Spacer	2
55	65*****57	Spacer	2
55	65*****89	Spacer	2
55	65*****57	Spacer	2
56	70*****00	Switch, isolator 150A 24V DC, (Supplied cpl with Key 701/47401)	1
56	70*****00	Switch, isolator & key	1
56	70*****00	Switch, isolator	1
56	70*****00	Switch, isolator 150A 24V DC, (Supplied cpl with Key 701/47401)	1
56	70*****00	Switch, isolator & key	1
56	70*****00	Switch, isolator	1
57	13******3Z	Screw, M8 x 16	1
57	13******3Z	Screw, M8 x 16	1
58	13******8Z	Bolt	4
58	13******8Z	Bolt	4
59	14******3Z	Washer	4
59	14******3Z	Washer	4
60	92*****09	Strip, seal, L=50mm	4
60	92*****09	Strip, seal, L=50mm	4
61	14******7Z	Washer, plain, M8; REPLACES KHN1550, SAN 12620	1
61	14******7Z	Washer, plain, M8; REPLACES KHN1550, SAN 12620	1
62	82*****79	Clip	5
62	82*****79	Clip	5
63	14*****06	Washer, soft	2
63	14*****06	Washer, soft	2
64	13******3Z	Nut, Self lock, M6	8
64	13******3Z	Nut, Self lock, M6	8
65	14******6Z	Washer, M6	8
65	14******6Z	Washer, M6	8
66	82*****64	Clip, 16mm	2
66	82*****64	Clip, 16mm	2
67	92*****02	Strip, edging	1
67	92*****02	Strip, edging	1
68	82*****24	Clip, edge	2
68	82*****24	Clip, edge	2
69	70*****00	Resistor, thermostart, 24V	1
69	70*****00	Resistor, thermostart, 24V	1
70	70*****00	Resistor, E.S.O.S	1
70	70*****00	Resistor, E.S.O.S	1
71	82*****86	Clamp, top, 25mm wide	2
71	82*****86	Clamp, top, 25mm wide	2
72	82*****87	Clamp, base, 25mm wide	2
72	82*****87	Clamp, base, 25mm wide	2
73	81*****78	Label, blue, self adhesive, for 24V components
73	81*****77	Label, red, self adhesive, for 12V components
73	81*****78	Label, blue, self adhesive, for 24V components
73	81*****77	Label, red, self adhesive, for 12V components
