BODYWORK/FRAME | 926 4WD | AGRICULTURAL | JCB

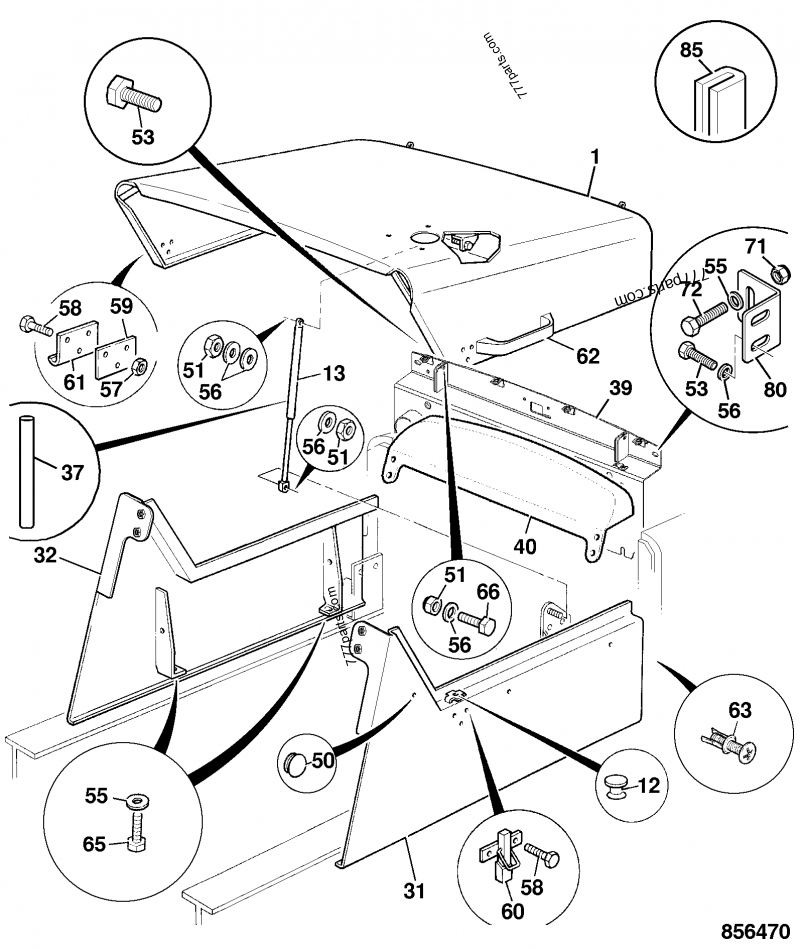

JCB 926 4WD BODYWORK/FRAME

#	Part No.	Description	Qty
1	33*****52	Bonnet, WA RTFL	1
1	33*****52	Bonnet, WA RTFL	1
8	19*****43	Bracket, side panel	2
8	19*****43	Bracket, side panel	2
12	82*****51	Stop	2
12	82*****51	Stop	2
13	33*****06	Strut, Gas; Superseded by 331/41902 See SAN 25808	1
13	33*****06	Strut, Gas; Superseded by 331/41902 See SAN 25808	1
31	33*****91	Panel, LH Side	1
31	33*****27	Panel, side LH.	1
31	33*****91	Panel, LH Side	1
31	33*****27	Panel, side LH.	1
32	33*****28	Panel, side RH.	1
32	33*****28	Panel, side RH.	1
37	33*****85	Sleeve, reflective	1
37	33*****85	Sleeve, reflective	1
39	33*****05	Plate, WA baffle	1
39	33*****71	Plate, baffle rear	1
39	33*****05	Plate, WA baffle	1
39	33*****71	Plate, baffle rear	1
40	33*****95	Plate, sealing strip	1
40	33*****95	Plate, sealing strip	1
50	24*****08	Grommet	1
50	24*****08	Grommet	1
51	13******3D	Nut, self lock M8	4
51	13******3D	Nut, self lock M8	4
52	14******7D	Washer, M8 spring	4
52	14******7D	Washer, M8 spring	4
53	13******5D	Setscrew, M8x20	8
53	13******5D	Setscrew, M8x20	8
54	13******5D	Setscrew, M10 x 20	4
54	13******5D	Setscrew, M10 x 20	4
55	14******8D	Washer, M10	16
55	14******8D	Washer, M10	16
56	14******7D	Washer, M8 plain	4
56	14******7D	Washer, M8 plain	4
57	13******3D	Nut, lock M5	4
57	13******3D	Nut, lock M5	4
58	13******5D	Screw, M5x20	10
58	13******5D	Screw, M5x20	10
59	19*****94	Plate, backing	2
59	19*****94	Plate, backing	2
60	19*****93	Latch	2
60	19*****93	Latch	2
61	19*****92	Plate, striker	2
61	19*****92	Plate, striker	2
62	12*****55	Handle	2
62	12*****55	Handle	2
63	82*****87	Retainer, scrivet	6
63	82*****87	Retainer, scrivet	6
65	13******7D	Setscrew, M10 x 25mm long	4
65	13******7D	Setscrew, M10 x 25mm long	4
66	13*****09	Capscrew, M8	2
66	13*****09	Capscrew, M8	2
71	13******3D	Nut, self lock M10	2
71	13******3D	Nut, self lock M10	2
72	13******8D	Setscrew, M10 x 30	2
72	13******8D	Setscrew, M10 x 30	2
80	33*****45	Bracket	2
80	33*****45	Bracket	2
85	92*****39	Strip, edging	1
85	92*****39	Strip, edging	1
