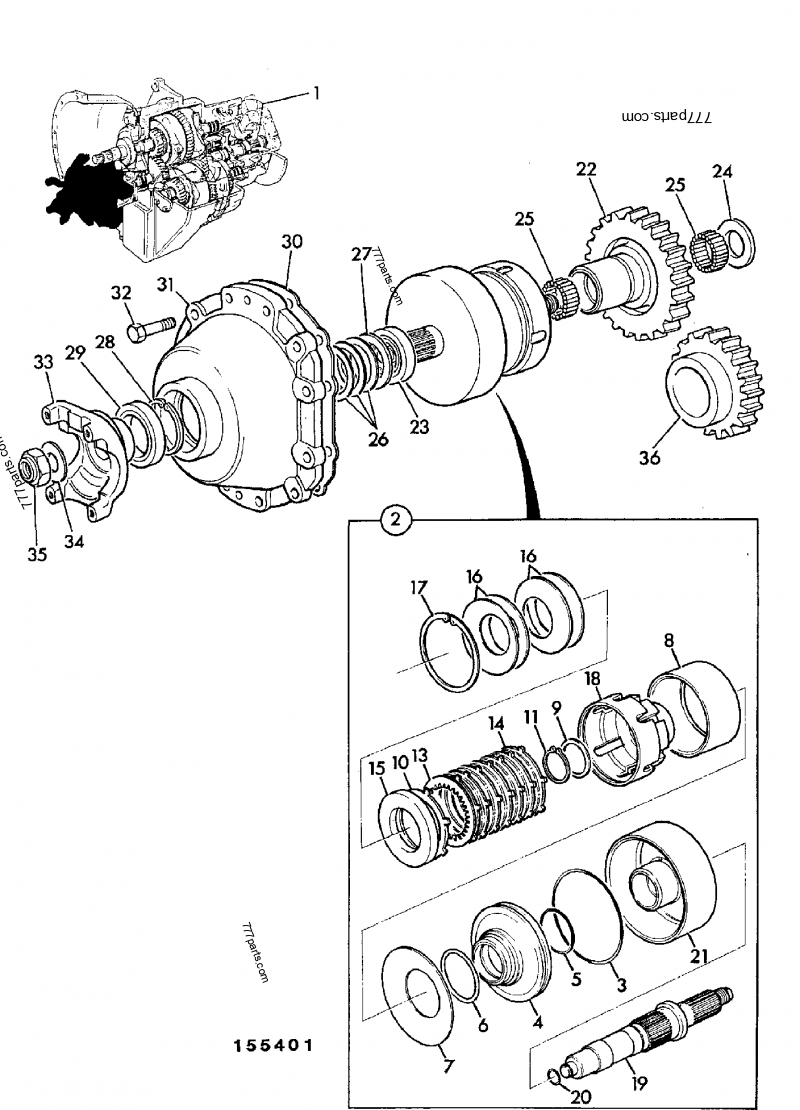

JCB 4CN444 SP 35 TRANSMISSIONS M404672 ON
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 44*****00 | Gearbox, powershift, 0.991:1; Replaced by 445/36200, See SAN04546 | 1 |
| 1 | 44*****00 | Gearbox, powershift, 0.991:1; Replaced by 460/81020, See SAN 11656 | 1 |
| 1 | 44*****00 | Gearbox, powershift, 0.991:1; Part is MSS use 445/34900 + 718/44900 x7., See SAN03781 | 1 |
| 1 | 46*****20 | Gearbox, assembly, PS750 | 1 |
| 2 | 44*****00 | Clutch, unit | 1 |
| 2 | 44*****00 | Clutch, unit; Replaced by 445/64700 See SAN03991. Note the, first counter plate has been deteted form new | 1 |
| 3 | 24*****44 | O Ring | 1 |
| 4 | 44*****03 | Piston; Replaced by 445/15701, See SAN05151 | 1 |
| 5 | 24*****21 | O Ring | 1 |
| 6 | 44*****14 | spring | 1 |
| 7 | 44*****18 | Disc, spring | 1 |
| 8 | 44*****05 | Sleeve, actuating | 1 |
| 9 | 44*****03 | Washer, thrust; Replaced by 445/19808, See SAN05152 | 1 |
| 10 | 44*****07 | Plate, shim | 1 |
| 11 | 44*****16 | Circlip, external | 1 |
| 13 | 44*****06 | Plate, friction | 11 |
| 14 | 44*****07 | Plate, counter | 11 |
| 15 | 44*****04 | Plate, pressure | 1 |
| 16 | 44*****10 | Disc, spring | 4 |
| 17 | 22*****04 | Circlip | 1 |
| 18 | 44*****06 | Drum, clutch; Replaced by 445/64701 see SAN03991 | 1 |
| 19 | 44*****02 | Shaft, output | 1 |
| 19 | 90*****00 | Seal, ring, 'TURQUOISE' | 1 |
| 19 | M.**S. | Multi Supersession | 1 |
| 19 | 44*****01 | Shaft, output; MSS USE 445/64702 X 1 + 904/14300 X 1, SAN 04917 | 1 |
| 20 | 90*****00 | Seal, ring, 'TURQUOISE' | 1 |
| 20 | 44*****02 | Seal, ring | 1 |
| 20 | 90*****22 | Seal, ring, 'WHITE' | 1 |
| 21 | 44*****02 | Housing, piston | 1 |
| 22 | 44*****01 | Gear, output, 44T | 1 |
| 23 | 90*****00 | Bearing; Replaced by 907/52800, See SAN05496 | 2 |
| 24 | 44*****03 | Washer, thrust; SUPERSEDED BY 823/10582 | 1 |
| 25 | 91*****00 | Bearing, needle roller | 2 |
| 26 | 44*****00 | Kit-shim | 1 |
| 27 | 44*****12 | Spacer | 1 |
| 28 | 22*****71 | Circlip | 1 |
| 29 | 90*****01 | Seal, dual lip | 1 |
| 29 | 90*****19 | Seal, duel lip | 1 |
| 30 | 81*****23 | Gasket | 1 |
| 30 | 81*****45 | Gasket; Replaced by 813/50054, See SAN08907 | 1 |
| 31 | 44*****05 | Cover | 1 |
| 31 | 44*****17 | Cover, 4wd output; Replaced by 449/10014 Also discard circlip &, spacer. | 1 |
| 32 | 13******8Z | Bolt | 10 |
| 33 | 44*****03 | Yoke, coupling | 1 |
| 34 | 14*****14 | Washer | 1 |
| 35 | 82*****17 | Nut, M24; USE 826/01483 | 1 |
| 36 | 44*****01 | Gear, input, 24T | 1 |
