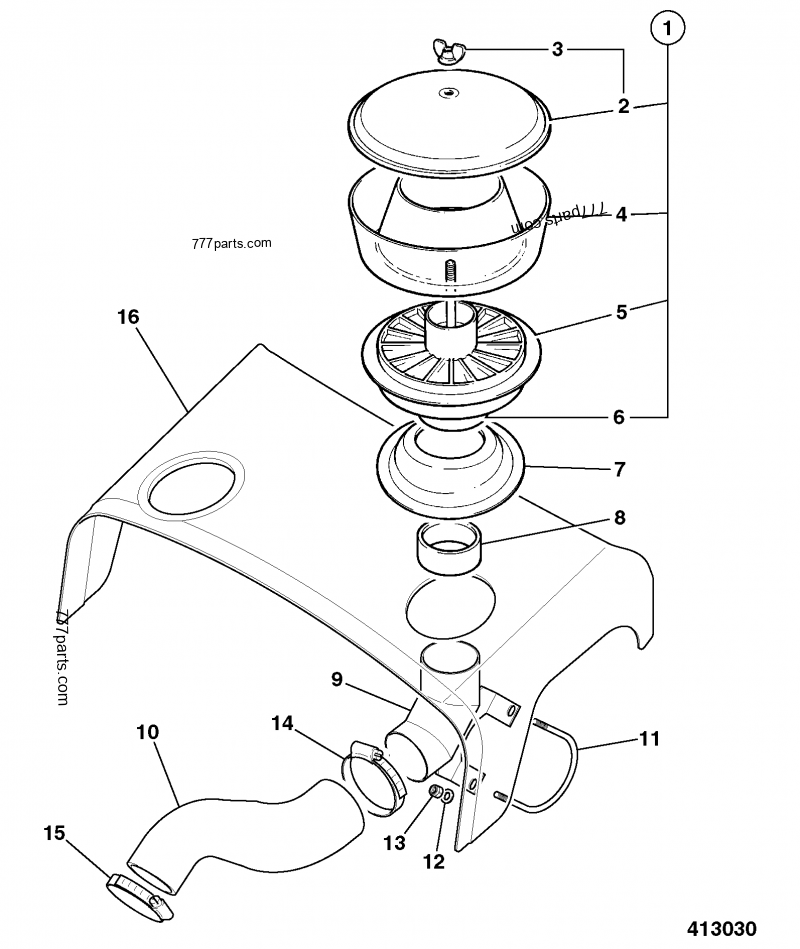

JCB 3CXC-4T PC INDUCTION & EXHAUST SYSTEMS
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 32*****00 | Filter, pre-cleaner | 1 |
| 1 | 32*****00 | Filter, pre-cleaner | 1 |
| 2 | 32*****01 | Cover, assembly | 1 |
| 2 | 32*****01 | Cover, assembly | 1 |
| 3 | 32*****05 | Nut, wing | 1 |
| 3 | 32*****05 | Nut, wing | 1 |
| 4 | 32*****02 | Bowl | 1 |
| 4 | 32*****02 | Bowl | 1 |
| 5 | 32*****03 | Sleeve, assembly | 1 |
| 5 | 32*****03 | Sleeve, assembly | 1 |
| 6 | 32*****04 | Clamp | 1 |
| 6 | 32*****04 | Clamp | 1 |
| 7 | 81*****77 | Seal, bonnet/pre-cleaner | 1 |
| 7 | 81*****77 | Seal, bonnet/pre-cleaner | 1 |
| 8 | 83*****10 | Adapter, pre-cleaner | 1 |
| 8 | 83*****10 | Adapter, pre-cleaner | 1 |
| 9 | 83*****44 | Tube, pre-cleaner | 1 |
| 9 | 83*****44 | Tube, pre-cleaner | 1 |
| 10 | 83*****70 | Hose, air induction | 1 |
| 10 | 83*****70 | Hose, air induction | 1 |
| 11 | 82*****20 | Bolt, 'U' | 1 |
| 11 | 82*****20 | Bolt, 'U' | 1 |
| 12 | 14******7Z | Washer, plain, M8; REPLACES KHN1550, SAN 12620 | 2 |
| 12 | 14******7Z | Washer, plain, M8; REPLACES KHN1550, SAN 12620 | 2 |
| 13 | 13******3Z | Nut, self lock, M8 | 2 |
| 13 | 13******3Z | Nut, self lock, M8 | 2 |
| 14 | 22*****15 | Clip, jubilee | 1 |
| 14 | 22*****15 | Clip, jubilee | 1 |
| 15 | 22*****14 | Clip, jubilee; Replaces KEJ0337 | 1 |
| 15 | 22*****14 | Clip, jubilee; Replaces KEJ0337 | 1 |
| 16 | 33*****50 | Cover, loader tower, with pre cleaner; See TI 2/312 | 1 |
| 16 | 33*****50 | Cover, loader tower, with pre cleaner; See TI 2/312 | 1 |
