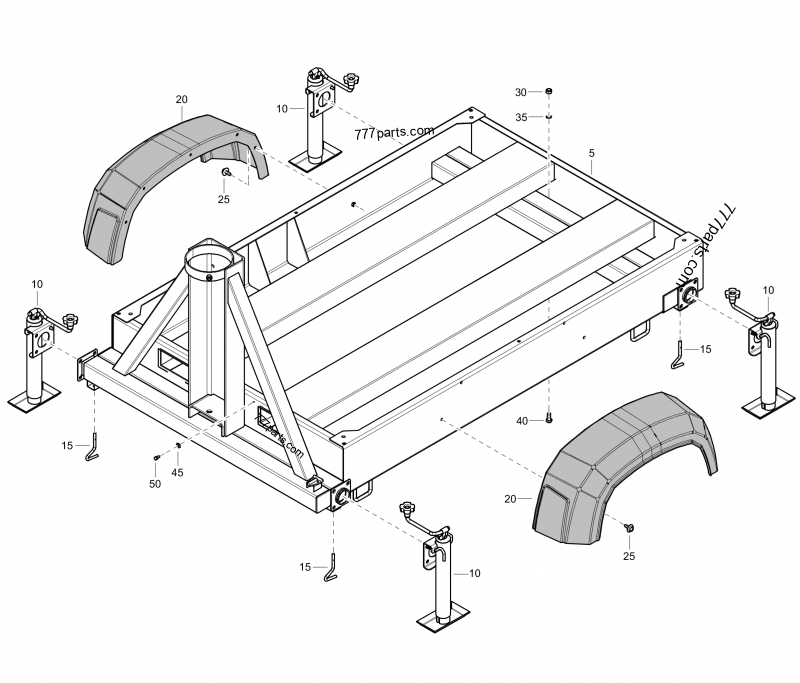

ATLAS COPCO HiLight S2+ Trailer frame assembly
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 10******81 | Trailer frame | 1 |
| 2 | 10******01 | Lifting jack top wind | 4 |
| 3 | 10******00 | Bar | 4 |
| 4 | 10******00 | Mudguard | 2 |
| 5 | 16******00 | Bolt-scraper:M 8x25, 8.8 fzb | 9 |
| 6 | 02******00 | Locknut:M8 w/nyl ins,zn pl stl | 1 |
| 7 | 03******00 | Lockwasher:M 8.40/15.0 serra | 1 |
| 8 | 01******85 | Hexagon head screw | 2 |
| 9 | 10******06 | Washer | 1 |
| 10 | 01******03 | Hexagon head bolt | 1 |
