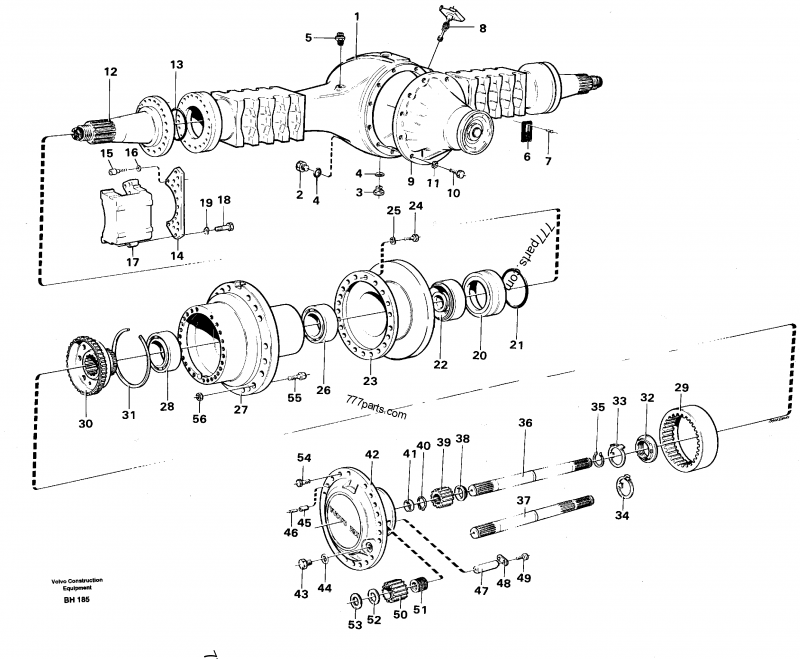

Planet axle, rear | A20C_2 | Articulated Haulers | VOLVO

VOLVO A20C_2 Planet axle, rear

#	Part No.	Description
0	VO*****38	Planetary Axle
0	VO******43	Nipple
0	VO********17	Axle Casing; AX 33747 -
0	VO******43	Nipple
0	VO******35	Screw
0	VO******66	Allen Hd Screw
1	VO********58	Axle Casing; AX - 33746
2	VO********56	Plug
3	VO********87	Magnetic Plug
4	VO******28	O-ring
5	VO******21	Nipple
6	VO********11	Part Plate
7	VO******91	Drive Screw
8	----	Differential lock
9	VO*******10	Final Drive
10	VO******26	Screw
11	VO******12	Spring Washer
12	VO*******71	Spindle
13	VO******27	O-ring
14	VO*******21	Brake Anchorage
15	VO********99	Allen Hd Screw
16	VO******14	Spring Washer
17	----	Brake
18	VO*******60	Screw
19	VO******14	Spring Washer
20	VO********41	Spacer Ring
21	VO********98	O-ring
22	VO********02	Seal
23	VO********81	Brake Disc
24	VO******91	Allen Hd Screw
25	VO******12	Spring Washer
26	VO******10	Roller Bearing
27	VO********87	Hub
28	VO******90	Roller Bearing
29	VO*******06	Gear Ring
30	VO********05	Gr Ring Holder
31	VO*******22	Snap Ring
32	VO********72	Nut
33	VO*******78	Lock Ring; ALT.
34	VO*******79	Lock Ring; ALT.
35	VO********05	Snap Ring
36	VO*******73	Drive Shaft
37	VO*******72	Drive Shaft; MED DIFF./WITH DIFF.
38	VO********09	Thrust Washer
39	VO********90	Sun Gear
40	VO*******33	Lock Ring
41	VO*******24	Wear Ring
42	VO********76	Planet Carrier
43	VO********56	Plug
44	VO******28	O-ring
45	VO******31	Spring Pin; D=14
46	VO******90	Spring Pin; D=8
47	VO********88	Planetary Gear Shaft
48	VO*******45	Striker Plate
49	VO*******48	Allen Hd Screw
50	VO********95	Planet Gear
51	VO*******19	Bearing Kit
52	VO*******86	Thrust Washer
53	VO********47	Thrust Washer
54	VO********64	Hexagon screw
55	VO*******88	Bolt
56	VO******72	Lug Nut
57	VO********51	Sealant
