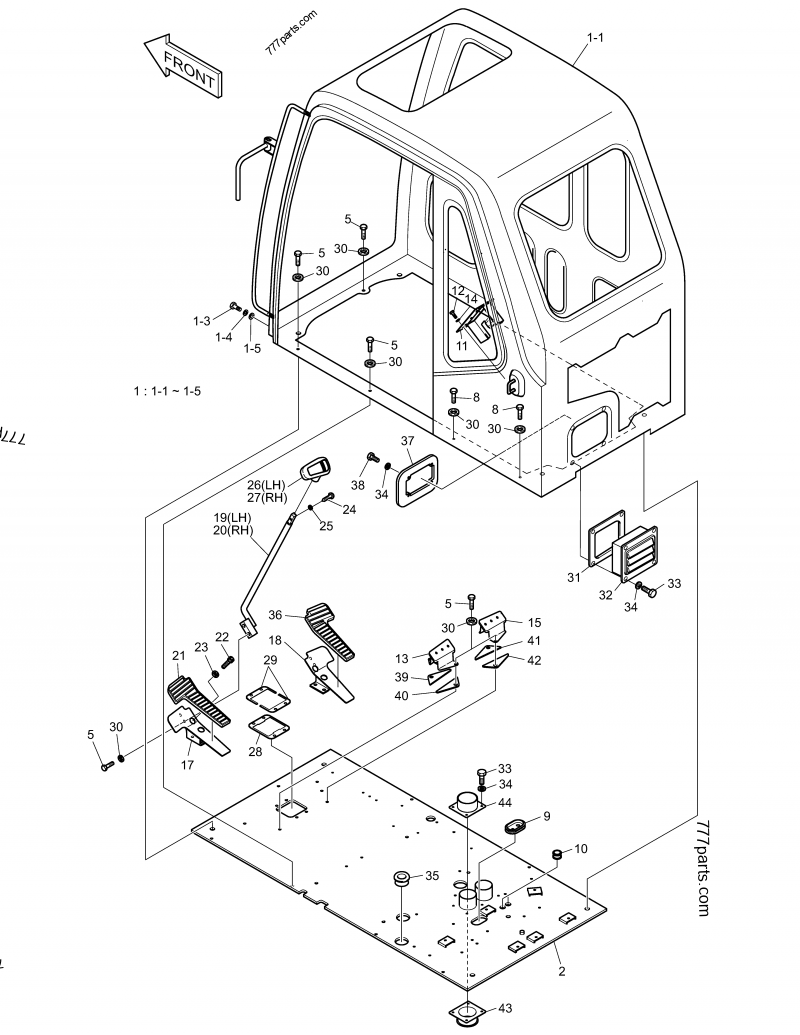

DOOSAN SOLAR+220LC-6 CABIN ASS'Y
| # | Part No. | Description | Qty |
|---|---|---|---|
| 0 | 62******7R | CABIN ASS'Y | |
| 0 | 62******7K | CABIN ASS'Y | 1 |
| 0 | 21*******D4 | BOLT, HEX | 4 |
| 0 | 21*******D5 | WASHER, SPRING | 4 |
| 0 | 21*******D1 | WASHER, PLAIN | 4 |
| 1 | 62******7H | CABIN ASS'Y | 1 |
| 2 | 62******0B | PLATE, FLOOR | 1 |
| 5 | 21*******D2 | BOLT, HEX | 11 |
| 8 | 21*******D3 | BOLT M10X1.5X65 | 4 |
| 9 | 21*****08 | BUSHING, RUBBER | 1 |
| 10 | 21********48 | BUSHING, RUBBER | 2 |
| 11 | 19******4C | BRACKET, AUDIO CASSETTE | 1 |
| 12 | S0****53 | BOLT, HEX | 3 |
| 13 | 21******4A | BRACKET, FOOT REST(L.H) | 1 |
| 14 | S5****13 | WASHER, PLAIN | 3 |
| 15 | 21******4A | BRACKET, FOOT REST(R.H) | 1 |
| 17 | 19******4A | BRACKET, PEDAL(L.H) | 1 |
| 18 | 19******3A | BRACKET, PEDAL(R.H) | 1 |
| 19 | 13******5A | LEVER(L.H) | 1 |
| 20 | 13******6A | LEVER(R.H) | 1 |
| 21 | 16*****82 | RUBBER, PEDAL(L.H) | 1 |
| 22 | S2****66 | BOLT, HEX SOCKET | 4 |
| 23 | S5****01 | WASHER, SPRING M10 | 4 |
| 24 | S2****66 | BOLT, HEX SOCKET | 2 |
| 25 | S5****13 | WASHER, PLAIN | 2 |
| 26 | 21******3B | GRIP=41301-01610 | 1 |
| 27 | 21******4B | GRIP, LEVER(R.H) | 1 |
| 28 | 16*****77 | PLATE, RUBBER | 1 |
| 29 | 62*****64 | PLATE, VALVE | 2 |
| 30 | 21*******D1 | WASHER, PLAIN | 15 |
| 31 | 21*****17 | RUBBER, PLATE | 1 |
| 32 | 62*****59 | PLATE, COVER | 1 |
| 33 | 21*******D6 | BOLT, HEX | 12 |
| 34 | 21*******D3 | WASHER, PLAIN | 16 |
| 35 | 16*****35 | BUSHING, RUBBER | 1 |
| 36 | 16*****81 | RUBBER, PEDAL(R.H) | 1 |
| 37 | 62*****60 | COVER, FRESH AIR DUCT | 1 |
| 38 | 21********19 | BOLT M6X1.0X12 | 4 |
| 39 | 16*****29 | RUBBER, DAMPER(L.H) | 1 |
| 40 | 16*****30 | RUBBER, DAMPER(L.H) | 1 |
| 41 | 16*****31 | RUBBER, DAMPER(R.H) | 1 |
| 42 | 16*****35 | RUBBER, DAMPER(R.H) | 1 |
| 43 | 16*****30 | BOOT, RUBBER | 2 |
| 44 | 19******5B | BRACKET | 2 |
