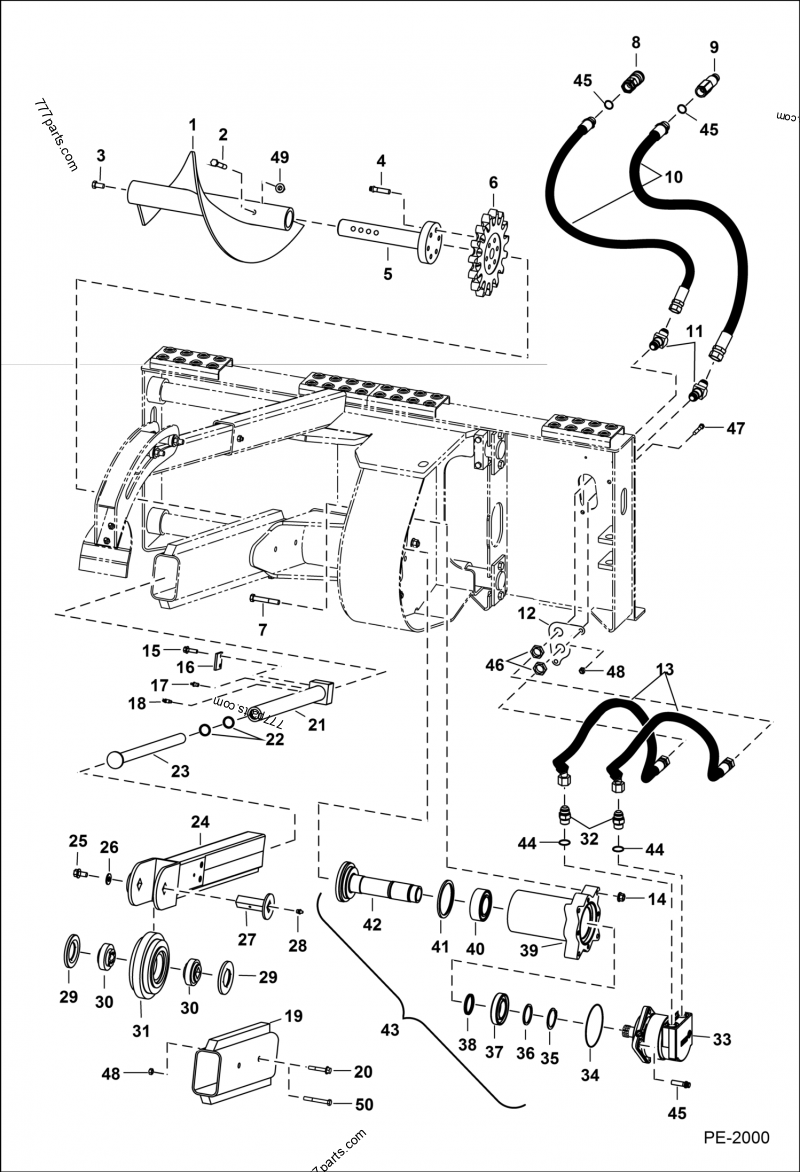

BOBCAT Trencher Trencher (LT313) (Digging Group) (S/N 045400101 & Above)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 71***93 | AUGER; Use W/ 5/8" bolts | 1 |
| 1 | 69***88 | AUGER; Use W/ 1/2" bolts | 1 |
| 2 | 17***56 | BOLT; 5/8" dia. | 1 |
| 2 | 17**56 | BOLT; 1/2" dia. | 1 |
| 3 | 17**16 | BOLT | 1 |
| 4 | 93**32 | BOLT; 1/2" dia. | 6 |
| 4 | 93***32 | BOLT; 5/8" dia. | 6 |
| 5 | 68***39 | SHAFT; Use W/ 1/2" bolts | 1 |
| 5 | 71***83 | SHAFT; Use W/ 5/8" bolts | 1 |
| 6 | 69***80 | SPROCKET, TRENCHER; Use W/ 1/2" bolts | 1 |
| 6 | 71***84 | SPROCKET; Use W/ 5/8" bolts | 1 |
| 7 | 17**52 | BOLT 5 | 4 |
| 8 | 72***90 | COUPLER FF FEM 1/2; straight - Was 6672960 | 1 |
| 8 | 72*****EF | COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD | 1 |
| 9 | 72***77 | COUPLER, FF MALE; straight - Was 6674688 | 1 |
| 9 | 72*****EF | COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE | 1 |
| 10 | 69***17 | HOSE | 2 |
| 11 | 46K8 | ELBOW | 2 |
| 12 | 69***14 | WASHER | 2 |
| 13 | 69***29 | HOSE | 2 |
| 14 | 83D8 | NUT LOCK | 5 |
| 15 | 31**20 | BOLT; Was 35C620 | 2 |
| 16 | 67***89 | COVER | 1 |
| 17 | 66***52 | FITTING, GREASE; 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE | 1 |
| 18 | 66***12 | SCREW,BLD | 1 |
| 19 | 68***84 | GUIDE, BOOM; for four foot depth | 1 |
| 20 | 84***12 | SCREW THD ROLLING TT | 2 |
| 21 | 67***12 | CYLINDER GREASE; grease | 1 |
| 22 | 66***36 | SEAL | 2 |
| 23 | 69***65 | ROD CYLINDER | 1 |
| 24 | 69***95 | TUBE, IDLER | 1 |
| 25 | 49**16 | BOLT; Was 35C816 | 1 |
| 26 | 27E8 | WASHER 10; Was 6675521 | 1 |
| 27 | 67***08 | SHAFT | 1 |
| 28 | 10*25 | FTG GREASE STRAIGHT | 1 |
| 29 | 67***05 | WASHER | 2 |
| 30 | 66***52 | BEARING SHAFT | 2 |
| 31 | 69***94 | IDLER, TRACK FRONT | 1 |
| 32 | 15****12 | FITTING, HYD CONNECTOR | 2 |
| 33 | ---- | MOTOR | 1 |
| 34 | 58**60 | O-RING; Was 25K030508B | 1 |
| 35 | 74**69 | SNAP RING | 1 |
| 36 | 68***62 | WASHER | 1 |
| 37 | 66***36 | BEARING | 1 |
| 38 | 66***73 | SEAL, PRESSURE; pressure | 1 |
| 39 | 69***25 | HOUSING; Was 6959132 | 1 |
| 40 | 65***55 | BEARING | 1 |
| 41 | 66***75 | SEAL, DUST; dust | 1 |
| 42 | 69***12 | SHAFT, DRIVE; Use W/ 1/2" sprocket bolts | 1 |
| 42 | 71***71 | SHAFT; Use W/ 5/8" sprocket bolts | 1 |
| 42 | 71***77 | SHAFT; Use W/ 5/8" sprocket bolts | 1 |
| 43 | 69***47 | BEARING CARRIER; W/Ref. 35-43 - Use W/ 1/2" sprocket bolts | 1 |
| 43 | 71***56 | CARRIER ASSY; W/Ref. 35-43 - Use W/ 5/8" sprocket bolts | 1 |
| 43 | 71***85 | CARRIER ASSY; W/Ref. 35-43 - Use W/ 5/8" sprocket bolts | 1 |
| 44 | 79*12 | O-RING | 4 |
| 45 | 93***28 | BOLT; Was 93G828 | 4 |
| 46 | 86F8 | NUT LOCK 5 | 2 |
| 47 | 17**16 | BOLT 5 | 2 |
| 48 | 85D6 | NUT PRETRQ HEX LOCK; Was 87D000006B | 3 |
| 49 | 83D8 | NUT LOCK; 1/2" dia. | 1 |
| 49 | 53*10 | NUT; 5/8" dia. - Was 83D10 | 1 |
| 50 | 17**56 | BOLT | 1 |
