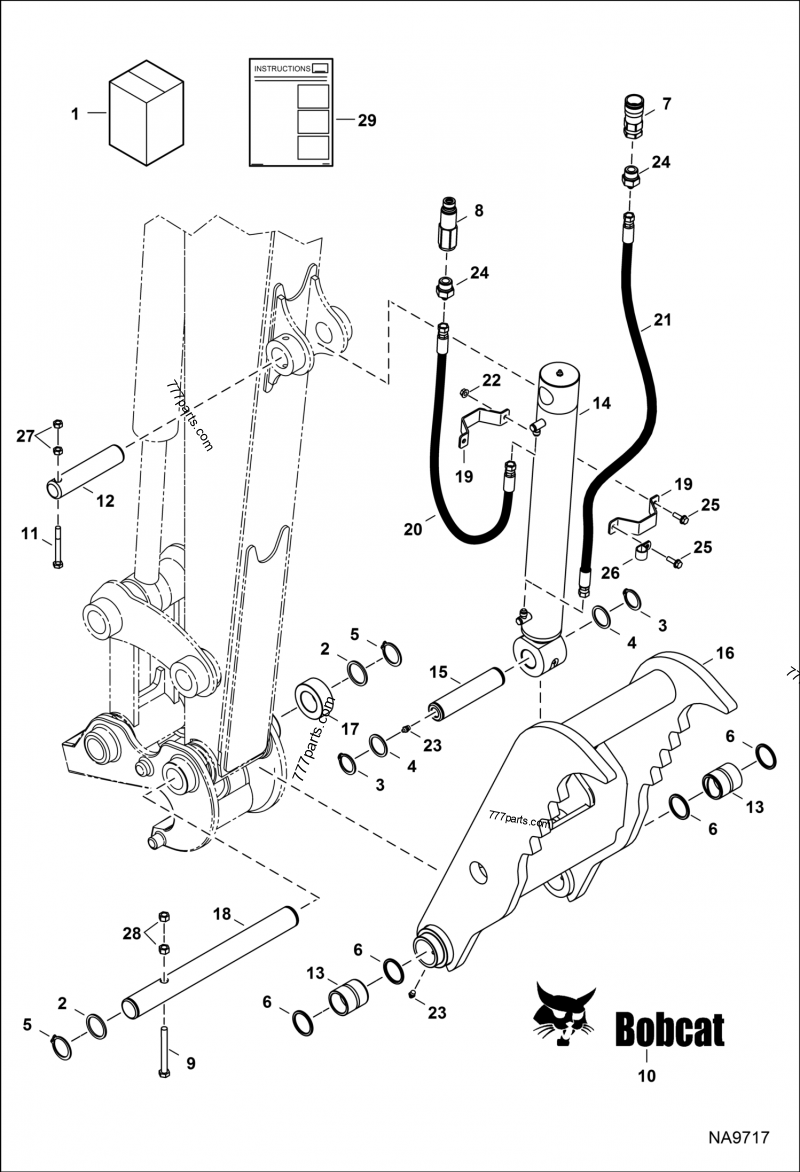

BOBCAT Clamp Clamp (Kit) (S/N AJBV00101 & Above)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 71***19 | KIT, CLAMP; SALES #7187919 - Ref. 2-29 | 1 |
| 2 | 66***47 | WASHER | 2 |
| 3 | 66***18 | RING, SNAP | 2 |
| 4 | 66***49 | WASHER | 2 |
| 5 | 66***87 | RING, SNAP | 2 |
| 6 | 66***87 | SEAL | 4 |
| 7 | 72***90 | COUPLER FF FEM 1/2; straight - Was 6672960 | 1 |
| 7 | 72*****EF | COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD | 1 |
| 8 | 72***77 | COUPLER, FF MALE; straight - Was 6674688 | 1 |
| 8 | 72*****EF | COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE | 1 |
| 9 | 3G****10 | SCREW; Was 7CM12110 | 1 |
| 10 | 71***73 | DECAL LOGO BOBCAT; Was 6727324 | 1 |
| 11 | 7C***90 | BOLT, HEX SOCKET | 1 |
| 12 | 71***40 | PIN, PIVOT | 1 |
| 13 | 71***45 | BUSHING WEAR | 2 |
| 14 | ---- | CYLINDER, CLAMP | 1 |
| 15 | 71***98 | PIN, PIVOT | 1 |
| 16 | 71***76 | CLAMP; NLA - Was SALES #7181976 | 1 |
| 16 | 72***73 | CLAMP; SALES #7251373 | 1 |
| 17 | 71***98 | SPACER | 1 |
| 18 | 71***48 | PIN, PIVOT | 1 |
| 19 | 71***80 | CLAMP, HALF | 2 |
| 20 | 71***32 | HOSE HYDRAULIC ASSY | 1 |
| 21 | 71***33 | HOSE HYDRAULIC ASSY; Use W/ 7199502 cylinder | 1 |
| 21 | 72***44 | HOSE HYDRAULIC ASSY; Use W/ 7254098 cylinder | 1 |
| 22 | 51*M8 | NUT HX THDLK PREAPPL | 2 |
| 23 | 10*25 | FTG GREASE STRAIGHT | 3 |
| 24 | 15****12 | FITTING, HYD CONNECTOR | 2 |
| 25 | 29***25 | SCREW HEX HD W/F 8.8 | 2 |
| 26 | 30*65 | CLIP | 1 |
| 27 | 4D*10 | NUT HEX | 2 |
| 28 | 4D*12 | NUT HEX | 2 |
| 29 | 69*******US | INSTRUCTIONS; Was 6989527 | 1 |
