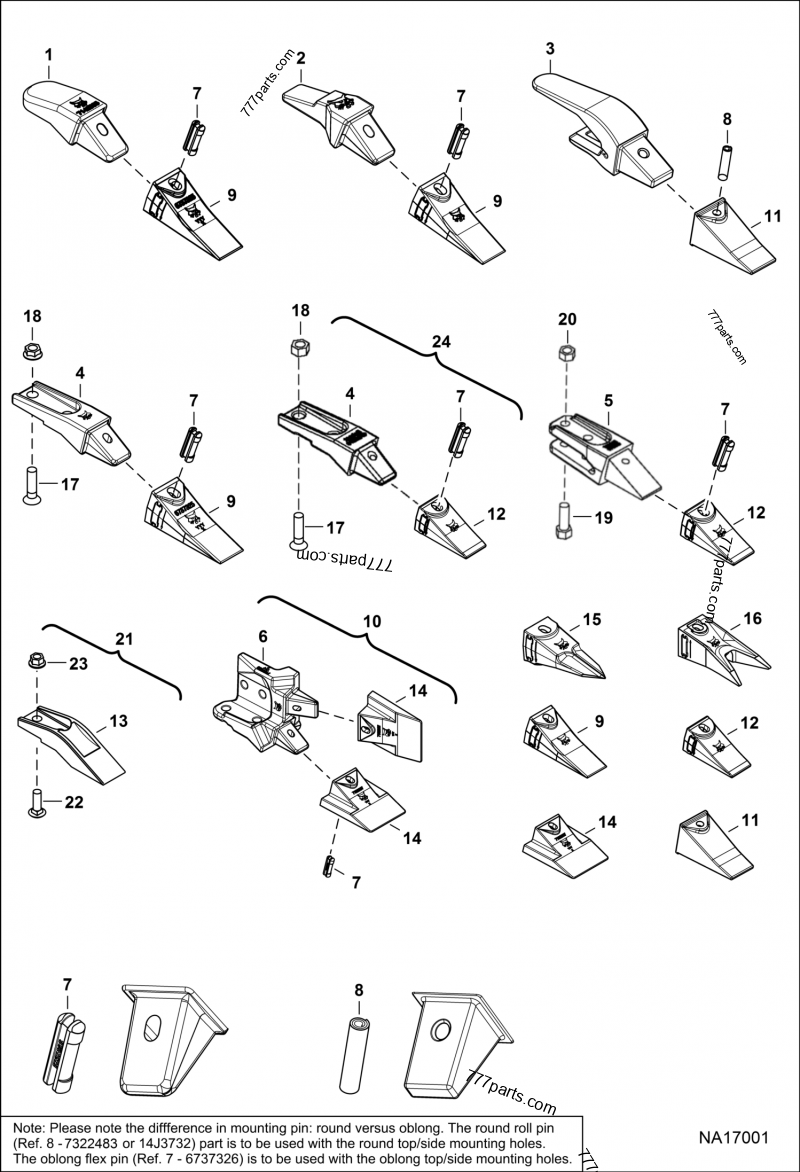

BOBCAT Bucket Bucket Shanks & Teeth (Service Replacement)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 71***35 | SHANK, WELD-ON CENTER | x |
| 2 | 73***75 | SHANK WELD-ON | x |
| 3 | 73***81 | SHANK WELD-ON | x |
| 4 | 67***24 | SHANK BOLT-ON; single | x |
| 5 | 71*****SD | ADAPTER TOOTH BUCKET; double Was 7107324EF | x |
| 6 | ---- | SHANK WELD-ON DOUBLE SIDE; NSS - Order Ref. 10 | x |
| 7 | 67***26 | PIN TOOTH BUCKET | x |
| 7 | 67*****SD | PIN FLEX BUCKET TOOTH | x |
| 8 | 73***83 | PIN TOOTH RETAINING; 50mm (1.97") long - Was 14J3736 | x |
| 8 | 14***32 | PIN, STRAIGHT 5; 50,8mm (2") long | x |
| 9 | 67***25 | TOOTH BUCKET; long | x |
| 10 | 71***31 | TOOTH, LH; Ref. 6 and (2) of Ref. 7 & 14 | x |
| 10 | 71***32 | TOOTH, RH; Ref. 6 and (2) of Ref. 7 & 14 | x |
| 11 | 73***82 | TOOTH BUCKET | x |
| 12 | 71***19 | TOOTH BUCKET; short | x |
| 13 | ---- | TOOTH BOLT-ON SINGLE; NSS - Order Ref. 21 | x |
| 14 | 71***97 | TOOTH WIDE | x |
| 15 | 71***20 | TOOTH BUCKET; tiger tooth | x |
| 16 | 71***21 | TOOTH BUCKET; twin tiger tooth | x |
| 17 | 95***40 | BOLT | x |
| 17 | 67***10 | BOLT | x |
| 18 | 57*10 | NUT | x |
| 19 | 47**32 | BOLT | x |
| 20 | 63D8 | NUT | x |
| 21 | 67***47 | KIT TOOTH BUCKET; Ref. 13, 22 & 23 | x |
| 22 | 9G*28 | BOLT | x |
| 23 | 97D8 | NUT | x |
| 24 | 71***35 | TOOTH ASSY; Ref. 4, 7 & 12 | x |
| 24 | 73***91 | KIT TOOTH BOLT-ON; Ref. 4, 7, 12, 17 &18 | x |
