Backhoe (709) (Main Frame) (S/N 270000101 & Above, A54M00101 & Above) | Backhoe | Attachments | BOBCAT

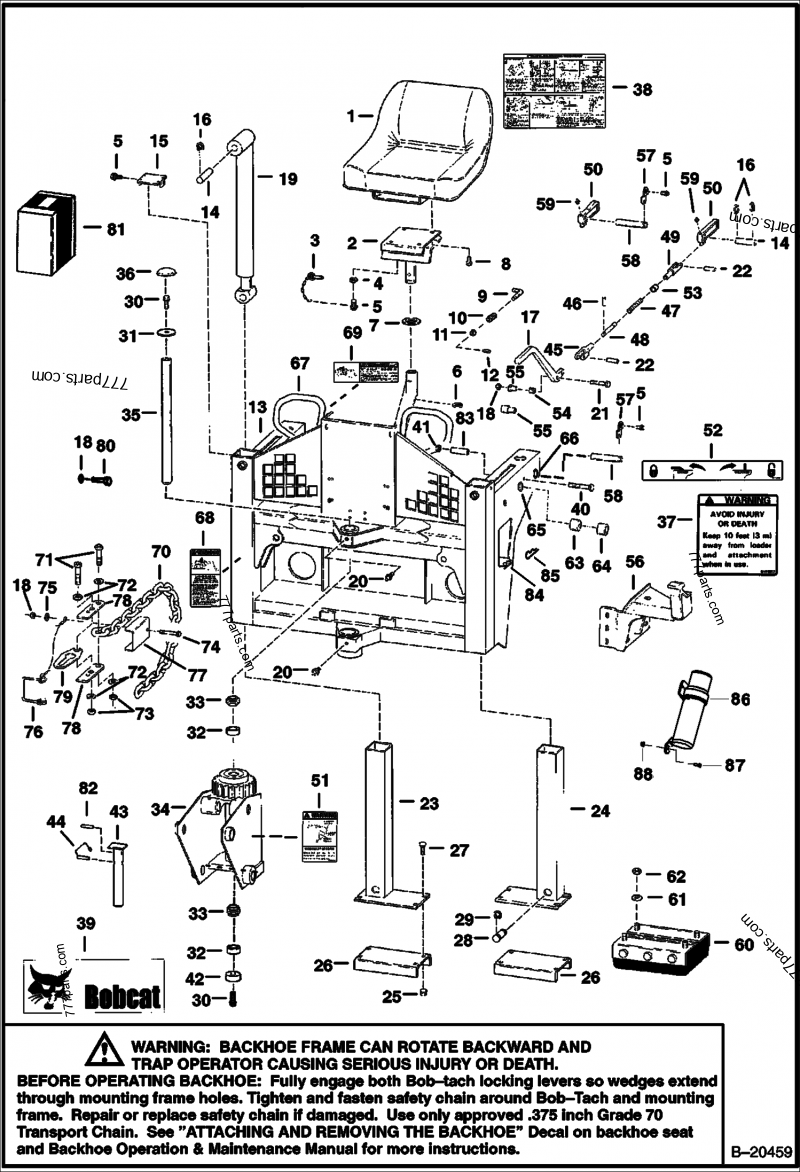

BOBCAT Backhoe Backhoe (709) (Main Frame) (S/N 270000101 & Above, A54M00101 & Above)

#	Part No.	Description	Qty
1	66***53	SEAT, OPERATOR VINYL; W/O adj. track - 7.25 in. x 7.00 in. (184 x 178 mm) hole spacing - Also Order Ref. 38 (6714915 decal)	1
1	66***21	SEAT; NLA - W/adj. track - Order 6643253 seat, Also Order Ref. 38 (6714915 decal) - Was 6653421	1
1	66***37	TRACK; NLA - W/O adj. - Was 6660437	1
1	66***36	TRACK; NLA - W/adj. - Was 6660436	1
2	65***84	HINGE, MOUNT SWIVEL; Was 6534341	1
3	65***80	PIN	1
4	7D6	NUT	1
5	84***12	SCREW THD ROLLING TT	9
6	22*24	RING, SNAP; Was 6538285	1
7	65***80	SPACER	1
8	17**12	BOLT 5; Was 17C000516B	4
9	65***36	PIN	1
10	66***82	SPRING	1
11	25*15	WASHER FLAT PLAIN	1
12	1F*08	PIN, COTTER	1
13	71***49	MAIN FRAME	1
13	65***75	FRAME BACKHOE; Was 6532834	1
14	65***78	PIN; 1.00" (25.4mm) dia. x 4.00" (101.2 mm) long	2
15	65***29	CAP	2
16	23*16	SNAP RING; Was 662770B	4
17	68***22	HANDLE; Was 6533163	2
18	89D6	NUT	4
19	----	CYLINDER; stabilizer	2
20	10*25	FTG GREASE STRAIGHT	4
21	17**60	BOLT	2
21	17**80	BOLT	2
22	14***32	PIN CSPR STRAIGHT	4
23	65***80	STABILIZER; R.H.	1
24	65***11	STABILIZER; L.H.	1
25	85D8	NUT PRETRQ HEX LOCK; Was 55D8	8
26	65***90	CLEAT	2
27	37**20	BOLT SQ NECK RND HD; Was 6560578	8
28	65***69	PIN	2
29	22*16	SNAP RING; Was 6538286	4
30	49***28	BOLT; Was 31C001228B	2
31	65***55	WASHER	1
32	65***82	RACE	2
33	65***37	BEARING ASSEMBLY	2
34	67***63	FRAME, BACKHOE 709; swing - Was 6532793	1
35	65***35	SHAFT	1
36	65***71	CAP	1
37	71***44	DECAL WARNING; warning - Was 6583862	2
38	67***15	DECAL MOUNTING; mounting instructions - Was 6536325	1
39	71***73	DECAL LOGO BOBCAT; Was 6727324	1
40	17**68	BOLT	2
41	85D8	NUT PRETRQ HEX LOCK	2
42	65***31	WASHER	1
43	65***95	LOCK,BOOM; boom lock - Was 6531439	1
44	65***20	PIN, LOCK	1
45	65***59	CLEVIS	2
46	14***20	PIN	2
47	65***53	SPRING COMPRESSION	2
48	65***58	ROD	2
49	67***48	PIVOT, WEDGE	2
50	65***77	STOP; Was 6533115	2
51	65***59	DECAL TRANSPORT	2
52	65***96	DECAL; R.H.	1
52	65***97	DECAL; L.H.	1
53	65***60	BUSHING	2
54	67***53	SPRING COMPRESSION; Was 6578252	2
55	65***36	PIVOT,LEV	2
55	65***15	PIVOT	2
56	----	MOUNT	1
57	65***07	RETAINER	4
58	65***08	PIN; 1.00" (25,4 mm) dia. x 4.60" (101,2 mm) long	4
59	10*25	FTG GREASE STRAIGHT	2
60	66***64	PAD, STREET; street	2
61	25*22	WASHER	8
62	61D8	NUT 5	8
63	65***16	BUSHING	2
64	65***23	BUSHING	2
65	65***76	BUSHING	4
66	65***77	BUSHING	4
67	68***33	HANDRAIL; NLA - Was 6805233	2
68	67***20	DECAL WARNING	1
69	67***11	DECAL WARNING	1
70	67***35	CHAIN; 55" (1245 mm) long - chain only - use only approved .375 inch grade 70 transport chain - Was 6714867	1
71	38**20	SCREW	2
72	27E8	WASHER 10	4
73	89D6	NUT; Was 53D6	2
74	17**36	BOLT	1
75	27E6	WASHER	1
76	66***38	PIN, HITCH	1
77	67***39	GUIDE, CHAIN	1
78	67***69	LATCH	2
79	67***68	BRACKET	1
80	17**12	SCREW HEX CAP	1
81	67*****AR	KIT, DECAL; decal - SEE NOTE	1
81	67*****BR	KIT, TRANSLATION; translation - SEE NOTE	1
81	67*****AR	KIT, TRANSLATION; translation - SEE NOTE	1
81	67*****JP	KIT, DECAL; decal - SEE NOTE	1
81	67*****BR	KIT, DECAL; decal - SEE NOTE	1
82	14***40	PIN	1
83	65***51	BUSHING	2
84	71***21	STEP; Was 6805450	2
85	13***37	PIN HAIR	2
86	71***47	CONTAINER, MANUAL; W/ 6686517 tube	1
87	17**14	BOLT	2
88	83D5	NUT LOCK	2
