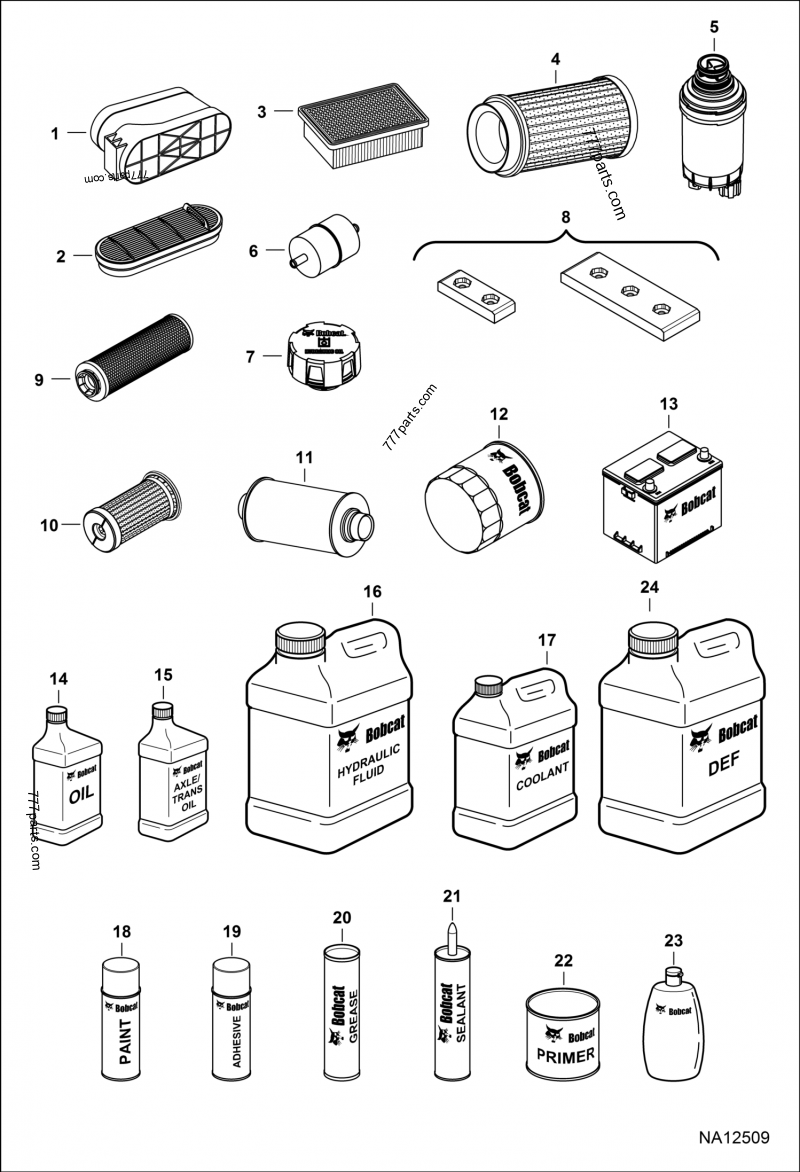

BOBCAT TL34.65HF Maintenance Items (Service Parts)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 72***22 | FILTER AIR PRIMARY | 1 |
| 2 | 72***23 | FILTER AIR SECONDARY | 1 |
| 3 | 71***67 | FILTER AIR; cabin | 1 |
| 4 | ---- | FILTER. DEF | 1 |
| 5 | 70***89 | FILTER FUEL W/SEPARATOR | 1 |
| 6 | 66***77 | FILTER, FUEL IN-LINE | 1 |
| 7 | 67***75 | CAP HYDRAULIC | 1 |
| 8 | ---- | PAD, WEAR | x |
| 9 | 70***77 | FILTER CARTRIDGE; Also Order 7027473 seal kit | 2 |
| 10 | 70***78 | FILTER CARTRIDGE; Also Order 7027474 seal kit | 1 |
| 11 | 72***80 | ELEMENT FILTER; oil separator | 1 |
| 12 | 70***03 | FILTER, OIL ENG | 1 |
| 13 | 72***29 | BATTERY | 1 |
| 14 | 69****9D | OIL ENGINE 15W40 API CJ-4 1000L; Was 6987790D | x |
| 14 | 69****9C | OIL ENGINE 15W40 API CJ-4 210L; Was 6987790C | x |
| 14 | 69****9B | OIL ENGINE 15W40 API CJ-4 20L; Was 6987790B | x |
| 14 | 69****9A | OIL ENGINE 15W40 API CJ-4 5L; Was 6987790A | x |
| 14 | 69****8C | OIL ENGINE 10W30 API CJ-4 210L; Was 6987789C | x |
| 14 | 69****8B | OIL ENGINE 10W30 API CJ-4 20L; Was 6987789B | x |
| 14 | 69****8A | OIL ENGINE 10W30 API CJ-4 5L; Was 6987789A | x |
| 14 | 69****8D | OIL ENGINE 10W30 API CJ-4 1000L; Was 6987789D | x |
| 15 | 69****5A | OIL TRANSMISSION AXLE 80W90 API GL-5 LS 5L | x |
| 15 | 69****4A | OIL, TRANSMISSION 5L 4 | x |
| 15 | 69****5B | OIL TRANSMISSION AXLE 80W90 API GL-5 LS 20L | x |
| 15 | 69****4B | OIL, TRANSMISSOIN 20L | x |
| 15 | 69****5C | OIL TRANSMISSION AXLE 80W90 API GL-5 LS 210L | x |
| 15 | 69****4C | OIL, TRANSMISSOIN 210L | x |
| 15 | 69****4D | OIL TRANSMISSION (1000L) | x |
| 15 | 69****5D | OIL TRANSMISSION AXLE 80W90 API GL-5 LS 1000L | x |
| 16 | 69****1A | FLUID, OIL HYD 5L 4 | x |
| 16 | 69****1D | FLUID, OIL HYD 1000L | x |
| 16 | 69****1C | FLUID, OIL HYD 210L | x |
| 16 | 69****1B | FLUID, OIL HYD 20L | x |
| 17 | 69****4D | ANTIFREEZE/COOLANT, EG 53/47 PREMIX 1000L | x |
| 17 | 69****4C | ANTIFREEZE/COOLANT, EG 53/47 PREMIX 210L | x |
| 17 | 69****4B | ANTIFREEZE/COOLANT, EG 53/47 PREMIX 20L | x |
| 17 | 69****4A | ANTIFREEZE/COOLANT EG 53/47 PREMIX 5L 4 | x |
| 17 | 69****3B | ANTIFREEZE/COOLANT PG 53/47 PREMIX 20L | x |
| 17 | 69****3D | ANTIFREEZE/COOLANT, EG CONCENTRATE 1000L | x |
| 17 | 69****3C | ANTIFREEZE/COOLANT, EG CONCENTRATE 210L | x |
| 17 | 69****3B | ANTIFREEZE/COOLANT, EG CONCENTRATE 20L | x |
| 17 | 69****3D | ANTIFREEZE/COOLANT PG 53/47 PREMIX 1000L | x |
| 17 | 69****3C | ANTIFREEZE/COOLANT PG 53/47 PREMIX 210L | x |
| 17 | 69****3A | ANTIFREEZE/COOLANT PG 53/47 PREMIX 5L 4 | x |
| 17 | 69****3D | ANTIFREEZE/COOLANT, PG CONCENTRATE 1000L | x |
| 17 | 69****3C | ANTIFREEZE/COOLANT, PG CONCENTRATE 209L | x |
| 17 | 69****3B | ANTIFREEZE/COOLANT, PG CONCENTRATE 20L | x |
| 17 | 69****3A | ANTIFREEZE/COOLANT, EG CONCENTRATE 5L 4 | x |
| 18 | 72***04 | PAINT, RED .5 OZ | x |
| 18 | 66***83 | PAINT, SPRAY BLUE CAN | x |
| 18 | 72***95 | PAINT, WHITE QT 6 | x |
| 18 | 72***02 | PAINT, WHITE .5 OZ | x |
| 18 | 72***01 | PAINT, WHITE SPRAY CAN 6 | x |
| 18 | 72***94 | PAINT, CHARCOAL .5 OZ | x |
| 18 | 72***93 | PAINT, CHARCOAL SPRAY CAN 6; Was 6902229 | x |
| 18 | 72***89 | PAINT, ORANGE QT 6; original shade | x |
| 18 | 72***91 | PAINT, ORANGE .5 OZ; original shade | x |
| 18 | 73***44 | PAINT ORANGE SPRAY CAN 6; original shade - Was 7251690 | x |
| 18 | 72***92 | PAINT, CHARCOAL QT 6 | x |
| 19 | 66***80 | ADHESIVE SPRAY 10.5 OZ | x |
| 19 | 66***07 | ADHESIVE; NLA - Was 6650407 | x |
| 20 | 69***89 | GREASE, HD SUPREME 24 | x |
| 20 | 69***90 | GREASE, HP EXTREME 10 | x |
| 20 | 74***26 | GREASE BULK; Use W/ 7215865 hydraulic filter | x |
| 20 | 69***89 | GREASE, HD SUPREME 24; Was 6987888 | x |
| 21 | 66***83 | SEALANT, POLYURETHANE 300 ML | x |
| 21 | 69***18 | SEALANT, GASKET LIQUID 50ML; flange - Was 6650388 | x |
| 21 | 65***60 | SEALANT, ELEC .3 OZ | x |
| 21 | 66***72 | SEALANT, GASKET LIQUID 10.1 OZ | x |
| 22 | 72***06 | PRIMER, SPRAY CAN 6 | x |
| 22 | 72***05 | PRIMER, QT 6 | x |
| 23 | 66***88 | POLISH; window - cleaner - #1 - 8 oz | x |
| 23 | 66***89 | POLISH; window - scratch remover - #2 - 8 oz | x |
| 24 | 74***46 | FLUID DEF 2.5 GALLON (2) | x |
