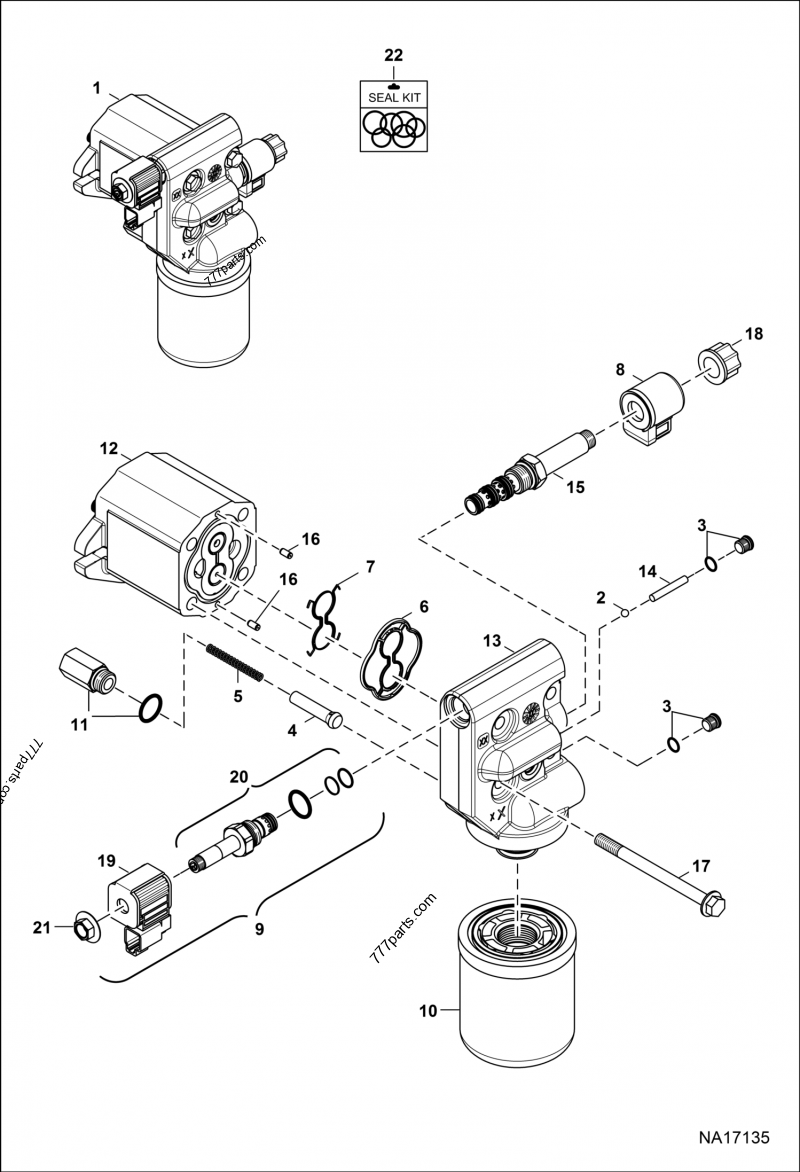

BOBCAT T76 Cooling Fan Motor (Reversing Fan)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 73***62 | MOTOR FAN ASSEMBLY; Ref. 2-21 | 1 |
| 2 | 65***05 | BALL DETENT | 1 |
| 3 | 72***64 | PLUG; W/O-Ring | 2 |
| 3 | 79K4 | O RING 10 | X |
| 4 | 72***25 | VALVE, CHECK | 1 |
| 5 | 72***68 | SPRING | 1 |
| 6 | ---- | SEAL; NSS - Order Ref. 22 | 1 |
| 7 | ---- | SEAL; NSS - Order Ref. 22 | 1 |
| 8 | 72***93 | COIL, SOLENOID | 1 |
| 9 | 73***21 | ASSY VALVE; W/Ref. 19-21 | 1 |
| 10 | 73***44 | ELEMENT FILTER | 1 |
| 11 | 79K8 | O-RING | X |
| 11 | 73***58 | FITTING HYDRAULIC; W/O-Ring | 1 |
| 12 | 73***60 | MOTOR FAN | 1 |
| 13 | 73***73 | MANIFOLD FAN | 1 |
| 14 | 73***77 | PIN DOWEL | 1 |
| 15 | 73***40 | VALVE STEM SOLENOID | 1 |
| 16 | 21***10 | PIN | 2 |
| 17 | 29*****30 | SCREW HEX CAP | 4 |
| 18 | ---- | NUT; NSS - Order Ref. 15 | 1 |
| 19 | 66***65 | COIL, CPP012H | 1 |
| 20 | 73***20 | VALVE PROPORTIONAL | 1 |
| 21 | ---- | NUT; NSS - Order Ref. 20 | 1 |
| 22 | 72***89 | KIT SEAL; Ref. 6 & 7 | 1 |
