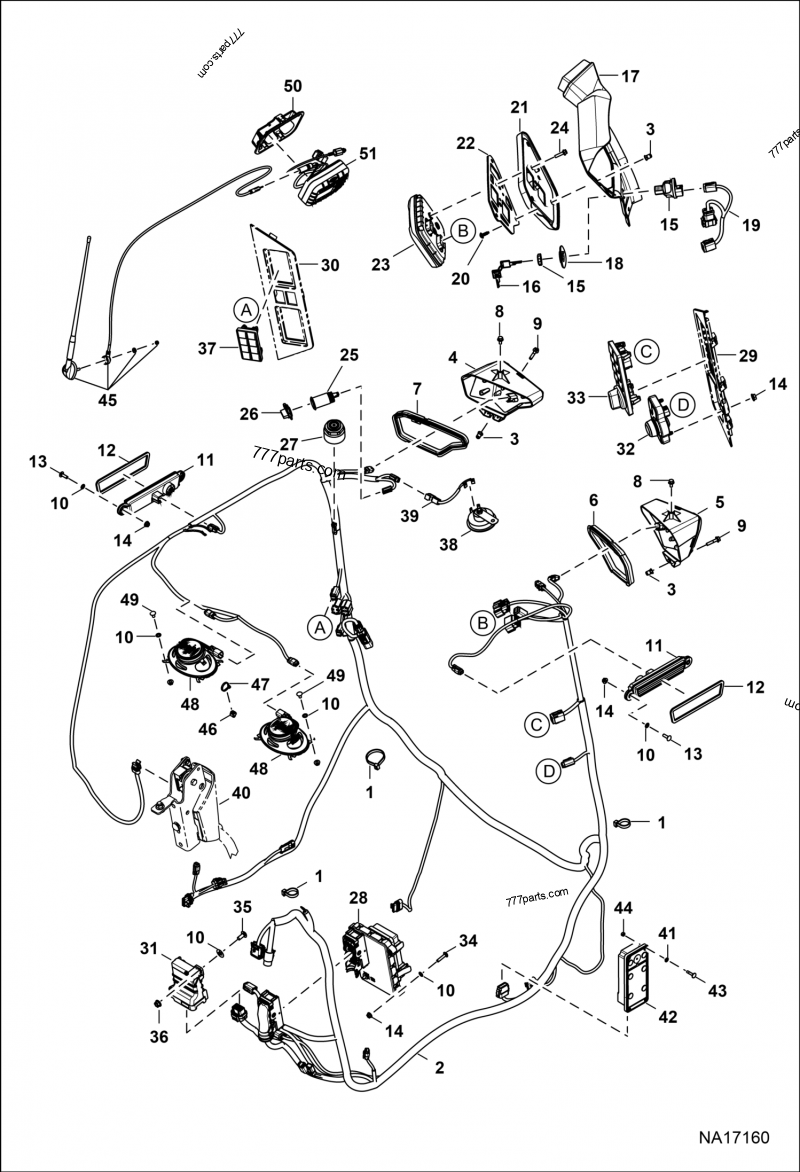

BOBCAT T66 CAB Electrical Circuitry (Standard)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 66***89 | STRAP, TIE | 21 |
| 2 | 74***26 | HARNESS CAB | 1 |
| 2 | 74***54 | HARNESS CAB | 1 |
| 3 | 73***65 | INSERT THREADED | 5 |
| 4 | 73***54 | LIGHT LED LH; standard LED | 1 |
| 4 | 73***39 | LIGHT LED LH; premium LED | 1 |
| 5 | 73***55 | LIGHT LED RH; standard LED | 1 |
| 5 | 73***40 | LIGHT LED RH; premium LED | 1 |
| 6 | 73***60 | SEAL RUBBER | 1 |
| 7 | 73***61 | SEAL RUBBER | 1 |
| 8 | 29***12 | BOLT, FLANGED | 2 |
| 9 | 29***30 | SCREW FLANGED HEAD CAP | 2 |
| 10 | 66***12 | RETAINER BOLT | 12 |
| 11 | 73***40 | LIGHT LED SIDE | 2 |
| 12 | 73***18 | GASKET LIGHT | 2 |
| 13 | 28***20 | BOLT CARRIAGE 8.8 | 4 |
| 14 | 43*M6 | NUT FLANGED HEX | 21 |
| 15 | 66***45 | SWITCH IGNITION | 1 |
| 16 | 67***27 | KEY IGNITION | 1 |
| 17 | ---- | PANEL START KEYED | 1 |
| 18 | 73***62 | INSERT SWITCH IGN | 1 |
| 19 | 73***76 | HARNESS IGNITION; NLA - Order 7406208 - Use W/ 7391178 NLA keypad - Was 7387176 | 1 |
| 19 | 74***08 | HARNESS IGNITION; Use W/ 7402469 keypad | 1 |
| 20 | 73***29 | SCREW 6-LOBE | 3 |
| 21 | 73***79 | COVER INSTRUMENT STD | 1 |
| 22 | 73***47 | PLATE MOUNTING | 1 |
| 23 | 74***80 | PANEL DISPLAY | 1 |
| 23 | 73***28 | COVER DISPLAY; front | 1 |
| 23 | 73***29 | COVER DISPLAY; back | 1 |
| 23 | 73***05 | SCREW PLASTIC | 8 |
| 24 | 29***25 | SCREW FLANGED HEAD CAP | 3 |
| 25 | 66***23 | OUTLET ELECTRICAL | 1 |
| 26 | 66***24 | CAP | 1 |
| 27 | 66***89 | ALARM BUZZER | 1 |
| 28 | 66***20 | SWITCH RELAY MAGNETIC | 2 |
| 28 | 73***72 | HOUSING FUSE CENTER | 1 |
| 28 | 67***44 | FUSE 25A 5 | 6 |
| 28 | 66***06 | FUSE, 15A | 2 |
| 28 | 66***05 | FUSE 10A | 2 |
| 28 | 66***89 | FUSE, 5A | 2 |
| 28 | 73***67 | RELAY ELECTRICAL | 4 |
| 29 | ---- | COLUMN FRONT RIGHT | 1 |
| 30 | ---- | COLUMN FRONT LEFT | 1 |
| 31 | 73***04 | CONTROLLER CAB | 1 |
| 32 | 73***22 | KEYPAD JOG SHUTTLE | 1 |
| 33 | 73***78 | KEYPAD DELUXE; NLA - Order 7402469 - Use W/ 7387176 NLA harness - Was 7391178 | 1 |
| 33 | 74***69 | KEYPAD THROTTLE; Use W/ 7406208 harness | 1 |
| 34 | 28***30 | BOLT | 4 |
| 35 | 28***20 | BOLT CARRIAGE 8.8 | 6 |
| 36 | 43*M8 | NUT FLANGED HEX | 2 |
| 37 | 73***40 | KEYPAD OPTIONS | 1 |
| 38 | 72***30 | HORN, ALARM | 1 |
| 39 | 73***33 | HARNESS HORN | 1 |
| 40 | ---- | SEAT BAR; SJC | 1 |
| 40 | ---- | SEAT BAR; manual controls | 1 |
| 41 | 66***16 | NUT,PUSH | 4 |
| 42 | 74***55 | CONTROLLER MACHINE IQ; EMEA - Was 7340164 | 1 |
| 43 | 33***25 | BOLT CARRIAGE | 4 |
| 44 | 53*M5 | NUT HEX | 4 |
| 45 | 73***05 | ANTENNA RADIO | 1 |
| 46 | 66***89 | MOUNT, FIR TREE | 2 |
| 47 | 66***90 | STRAP, TIE | 2 |
| 48 | 71***75 | SPEAKER | 2 |
| 49 | 28***12 | BOLT CARRIAGE 8.8 | 8 |
| 50 | 73***31 | MOUNT RADIO | 1 |
| 51 | 73***51 | RADIO SERVICE; Was 6988336 | 1 |
