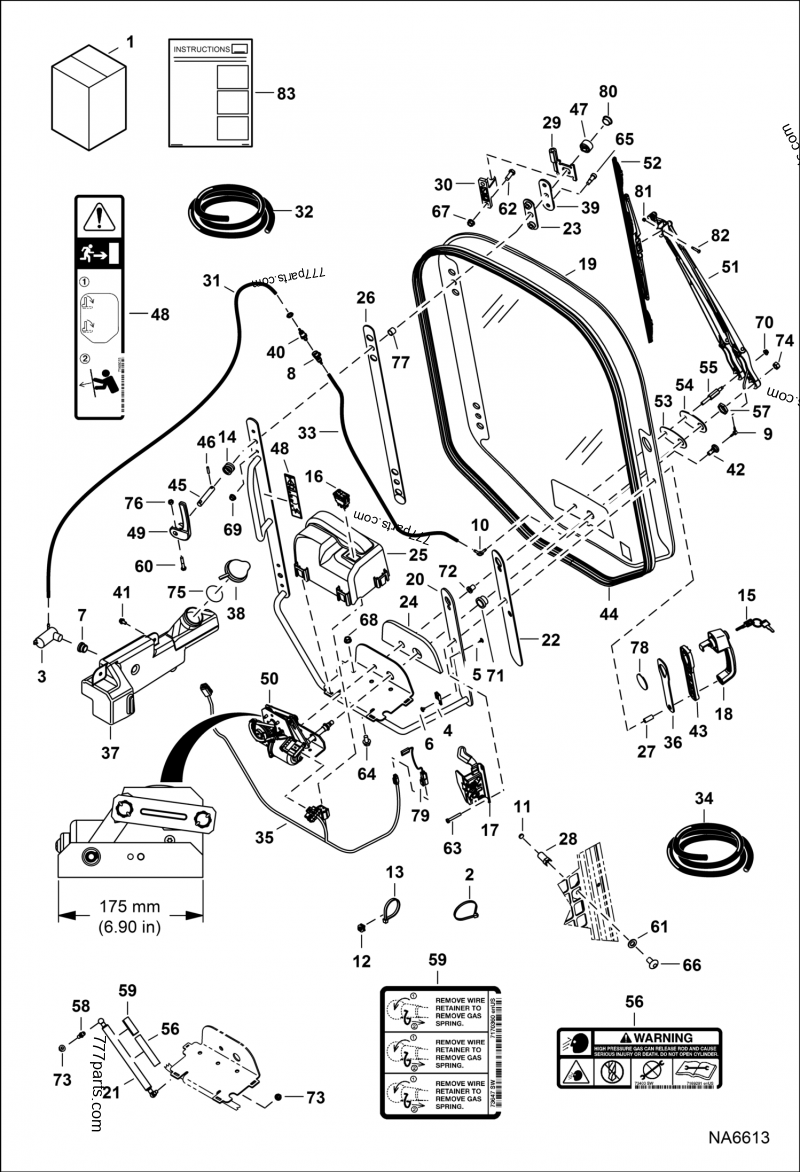

BOBCAT S650 CAB Door (175 mm (6.90”) Wiper Motor Mounting Bracket)

#	Part No.	Description	Qty
1	71***93	KIT, DOOR; NLA -Ref. 2-83 - Was 7128393	1
2	66***10	STRAP, TIE 10	3
3	73***03	WASHER PUMP; Also Order Ref. 7 - Was 6664554	1
4	66***00	BRACKET MOUNTING	1
5	66***21	RIVET PLASTIC MALE; NLA - order 6630207 single piece pop rivet - Was 6665321	1
6	66***22	RIVET PLASTIC FEMALE; NLA - order 6630207 single piece pop rivet - Was 6665322	1
7	73***20	GROMMET PUMP WSHR FLUID; Also Order Ref. 3 - Was 6666766	1
8	66***98	COUPLER, BODY	1
9	66***00	ELBOW EXTERIOR	1
10	66***17	ELBOW INTERIOR	1
11	66***92	SENSOR, MAGNETIC	1
12	66***88	TREE MOUNT	6
13	66***90	STRAP, TIE; 203 mm (8") long - not in kit	10
13	66***89	STRAP, TIE; 387,4 mm (15.25") long	5
14	67***53	SPRING COMPRESSION	2
15	66***41	KEY IGNITION (2)	1
16	70***09	SWITCH FRONT WIPER	1
17	71***61	LATCH, DOOR W/SENSOR; W/Ref. 79	1
18	71***62	HANDLE, LATCH DOOR	1
18	74***57	HANDLE LATCH ASSY W/2 KEYS M-SERIES	1
19	71***01	GLASS, DOOR; Also Order 7258389 plug	1
19	71*****PK	GLASS DOOR M-SERIES LOADER (25); bulk - sold per package of 25	1
20	71***02	FRAME, DOOR CAB	1
21	66***45	CLIP	2
21	71***71	SPRING GAS; Also Order Ref. 56 & 59	1
22	71***87	SEAL DOOR HANDLE	1
23	71***89	SEAL DOOR HINGE	2
24	71***37	GASKET, WIPER	1
25	71***27	COVER, WIPER	1
26	71***19	SEAL DOOR FRAME	1
27	71***41	SPACER HANDLE	2
28	71***51	STRIKER, DOOR	1
29	71***25	HINGE, DOOR CAB	2
30	73***80	HINGE; Was 7176593	2
31	----	HOSE; NLA - 1219 mm (48") long - Order Ref. 32	1
32	67***10	HOSE BULK; clear pvc - 0.154" ID - sold per foot	x
32	74***36	HOSE BULK; black EPDM - 0.154" ID - sold per foot	x
33	----	HOSE; NLA - 787 mm (31") long - Order Ref. 34	1
34	66***03	HOSE BULK; black - 0.109" ID - sold per foot	x
35	71***24	HARNESS DOOR	1
36	71***41	SEAL HANDLE DOOR	1
37	72***58	TANK WASHER	1
38	71***63	CAP WASHER BOTTLE	1
39	71***90	DOOR PLATE; NLA - Order 7283637 plate & (2) of Ref. 65 (38C612 bolt) - Was 7164590	2
39	72***37	PLATE, DOOR	2
40	71***72	COUPLER INSERT	2
41	71***90	SCREW THREAD ROLLING	3
42	71***77	GROMMET WIPER	1
43	71***05	SPACER HANDLE	1
44	72***63	SEAL, DOOR; Was 7222790	1
45	71***44	SHAFT	2
46	71***45	PIN	2
47	71***46	WASHER CAST	2
48	71***25	DECAL EMERGENCY DOOR	1
49	71***72	LEVER	2
50	71***52	WIPER MOTOR; 175 mm (6.90”) long mounting bracket	1
51	71***53	ARM WIPER ASSEMBLY	1
52	71***54	BLADE WIPER ASSY	1
53	71***55	GASKET	1
54	71***56	PLATE ADAPTOR	1
55	71***57	PLATE STUD ADAPTOR	1
56	71***91	DECAL; warning	1
57	66***05	NUT	1
58	71***49	FITTING BALL STUD	1
59	71***60	DECAL SPRING REMOVAL	1
60	17**28	BOLT	2
61	18****24	WASHER HARDENED PLN	1
62	35**16	SCREW HEX HD W/F GR5	4
63	1C**40	SCREW HEX CAP	2
64	31**12	BOLT	3
65	38**10	SCREW SHOULDER; Use W/Ref. 39 (NLA/ 7164590 plate)	4
65	38**12	BOLT; Use W/Ref. 39 (7283637 plate)	4
66	73***07	BOLT HEAD ROUND; Was 10C816	1
67	59D5	NUT LOCK HEX PT	4
68	97D6	NUT 10	3
69	97D5	NUT FLGD HEX LOCK	4
70	51*M6	NUT HX THDLK PREAPPL	1
71	71***38	SPACER	1
72	71***39	SPACER	1
73	59D5	NUT LOCK HEX PT	2
74	2D*10	NUT	1
75	71***97	SEAL	1
76	59D4	NUT LOCK HEX PT	2
77	71***15	BUSHING PLASTIC	2
78	71***17	DISK, PLASTIC	1
79	67***59	SENSOR, DOOR; Also Order (2) 6677193 rivet	1
79	66***93	RIVET	2
80	71***29	PLUG; if equipped	2
81	70***54	NUT; Was 7274762	1
82	70***55	BOLT; Was 7274763	1
83	69*******US	INSTRUCTIONS; Was 7278971ENUS	1
