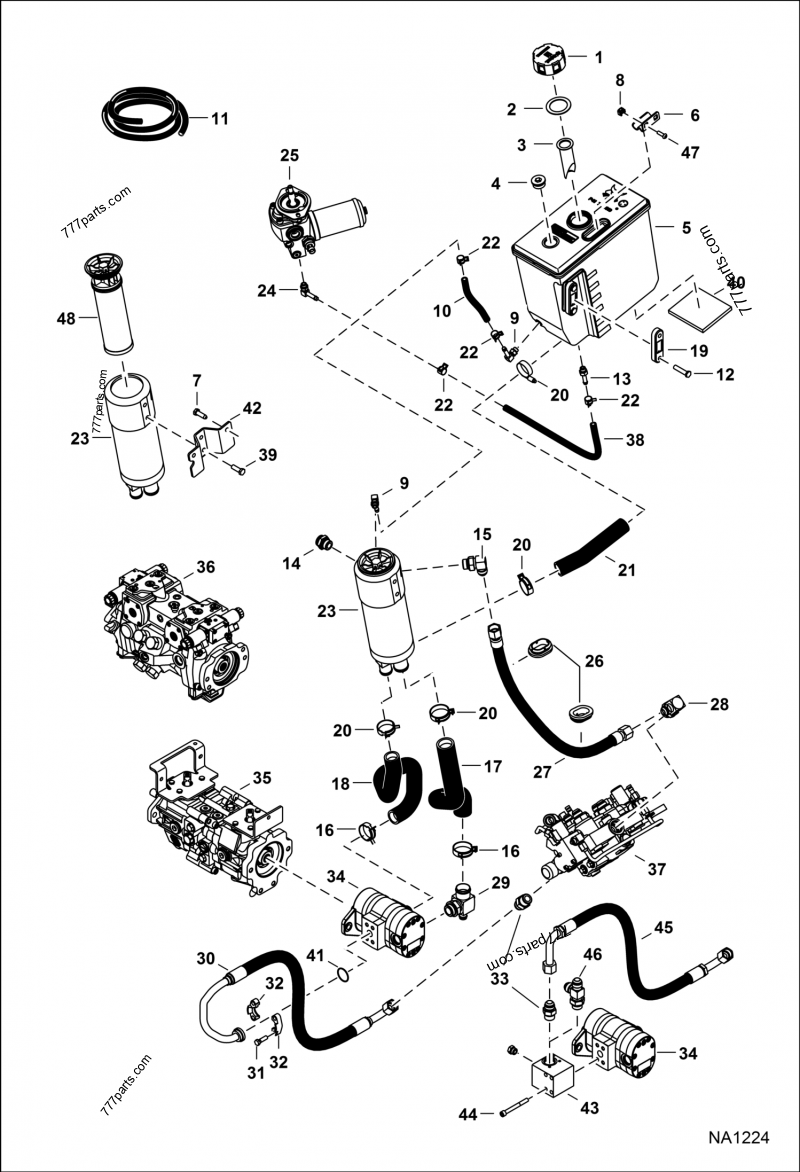

BOBCAT S650 Hydrostatic Circuitry (Tank & Filter)
(S/N A3NV11001 - A3NV11444, A3NW11001 - A3NW11099)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 67***75 | CAP HYDRAULIC | 1 |
| 2 | 67***31 | GASKET CAP TANK HYDR | 1 |
| 3 | 70***87 | SCREEN | 1 |
| 4 | 47*10 | PLUG | 1 |
| 4 | 79*16 | O-RING | x |
| 5 | 71***19 | TANK HYDRAULIC | 1 |
| 6 | 71***06 | BRACKET | 1 |
| 7 | 17**10 | BOLT | 2 |
| 8 | 57D5 | NUT HEX FLNG GR8 | 2 |
| 9 | 42***75 | CLAMP | 1 |
| 10 | ---- | HOSE; NLA - 190,5mm (7.5") - Order Ref. 11 | 1 |
| 11 | 65***51 | HOSE BULK; sold per foot | x |
| 12 | ---- | BOLT; NSS - Order Ref. 19 | 2 |
| 13 | 71***32 | CONNECTOR | 1 |
| 13 | 79K6 | O RING 10 | x |
| 14 | ---- | ADAPTER | 1 |
| 14 | 78*12 | O-RING | x |
| 15 | 17****12 | FITTING, HYD ELBOW | 1 |
| 15 | 79*12 | O-RING | x |
| 16 | 5H*47 | CLAMP | 2 |
| 17 | 71***57 | HOSE HYDRAULIC FORMED | 1 |
| 18 | 71***82 | HOSE HYDRAULIC FORMED | 1 |
| 19 | 70***21 | GAUGE SIGHT; W/Ref. 12 | 1 |
| 20 | 5H*42 | CLAMP HOSE | 3 |
| 21 | 71***31 | HOSE HYDRAULIC FORMED | 1 |
| 22 | 5H*16 | CLAMP | 4 |
| 23 | 71***10 | TANK, HYD FILTERED; NLA - filter not included - Was 7166410 | 1 |
| 24 | 67***13 | FITTING, ELBOW | 3 |
| 24 | 79K6 | O RING 10 | x |
| 25 | ---- | MOTOR, HYD COOLING FAN | 1 |
| 26 | 70***40 | GROMMET | 2 |
| 27 | 71***94 | HOSE | 1 |
| 28 | 79*16 | O-RING; base | x |
| 28 | 58**22 | O-RING; end | x |
| 28 | 71***71 | ELBOW | 1 |
| 29 | 71***21 | FITTING | 1 |
| 29 | 79*16 | O-RING | x |
| 30 | 72***91 | HOSE HYDRAULIC; Was 7159044 | 1 |
| 31 | 17**20 | BOLT | 4 |
| 32 | 19*12 | CLAMP | 2 |
| 33 | 15****12 | FITTING, HYD CONNECTOR | 2 |
| 33 | 79*12 | O-RING | 1 |
| 34 | ---- | PUMP, GEAR; standard flow hydraulics | 1 |
| 34 | ---- | PUMP, GEAR; high flow hydraulics | 1 |
| 35 | ---- | PUMP, HYD; manual controls, AHC & ACS | 1 |
| 36 | ---- | PUMP, HYD; SJC | 1 |
| 37 | ---- | VALVE, CONTROL; AHC, ACS & SJC | 1 |
| 37 | ---- | VALVE, CONTROL; manual controls | 1 |
| 38 | ---- | HOSE; NLA - 533,4mm (21") - Order Ref. 11 | 1 |
| 39 | 17**10 | BOLT | 2 |
| 40 | 71***09 | PAD, WEAR | 2 |
| 41 | 55**14 | O-RING | 1 |
| 42 | 71***82 | BRACKET | 1 |
| 43 | 72***07 | MANIFOLD, OUTLET PUMP; Was 7029565 | 1 |
| 43 | ---- | VALVE, POWER BOB-TACH | 1 |
| 44 | 17**44 | BOLT | 4 |
| 45 | 72***34 | HOSE HYDRAULIC ASSY; Was 7172234 | 1 |
| 46 | 21****12 | FITTING, HYD TEE | 1 |
| 46 | 79*12 | O-RING | x |
| 47 | 53**16 | SCREW TRX BTN HD CAP | 2 |
| 48 | 70***34 | FILTER OIL HYD TANK | 1 |
| 48 | 70***88 | O-RING | 1 |
| 48 | 70***89 | O-RING | 1 |
