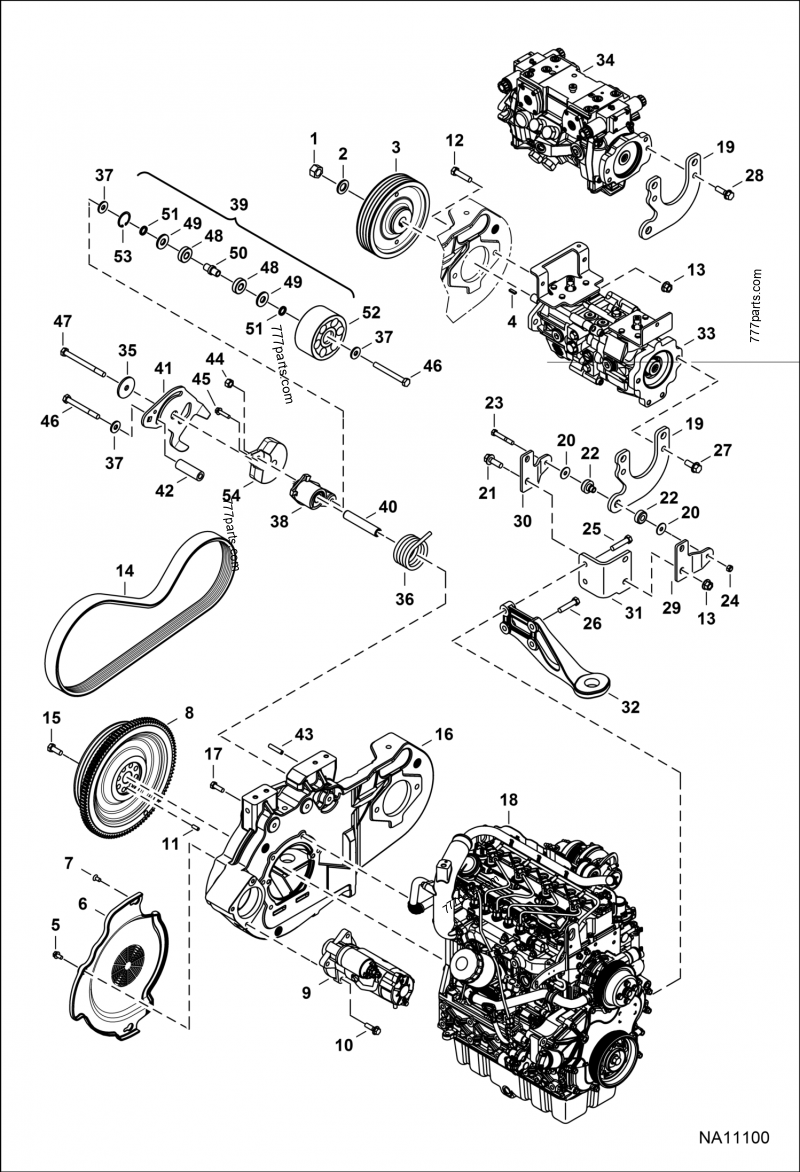

BOBCAT S630 Engine & Attaching Parts (Belt Drive System)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 73***82 | NUT HEX; manual controls - Was 96D12 | 1 |
| 1 | 96*16 | NUT; SJC | 1 |
| 2 | 73***83 | WASHER FLAT; manual controls - Was 6576033 | 1 |
| 2 | 68***50 | WASHER; SJC | 1 |
| 3 | 71***47 | PULLEY, PUMP HYD; SJC | 1 |
| 3 | 73***12 | PULLEY PUMP; manual controls - Was 7182046 | 1 |
| 4 | 6J*07 | KEY WOODRUFF; manual | 1 |
| 5 | 59***16 | BOLT | 1 |
| 6 | 71***97 | SHIELD, BELT | 1 |
| 7 | 71***38 | BOLT | 2 |
| 8 | 71***96 | FLYWHEEL ENGINE ASSEMBLY; W/ring gear | 1 |
| 8 | 65***70 | GEAR RING STARTER | 1 |
| 9 | ---- | STARTER | 1 |
| 10 | 29****35 | SCREW HEX 10MMX35MM | 3 |
| 11 | 70***80 | PIN | 1 |
| 12 | 17**32 | BOLT | 2 |
| 13 | 83D8 | NUT LOCK | 4 |
| 14 | 71***71 | BELT DRIVE; Was 7265866 | 1 |
| 15 | 70***70 | BOLT | 8 |
| 16 | 73***00 | MOUNT ENGINE PUMP; Was 7215027 | 1 |
| 17 | 1C***30 | BOLT | 8 |
| 18 | ---- | ENG D24 74 HP EPA TIER 4 / EU STAGE IV | 1 |
| 19 | 71***87 | SUPPORT PUMP | 1 |
| 20 | 67***88 | WASHER HARDENED | 2 |
| 21 | 31**24 | BOLT 10 | 2 |
| 22 | 72***84 | MOUNT, LOAD ISOLATOR | 1 |
| 23 | 17**40 | BOLT | 1 |
| 24 | 85D6 | NUT PRETRQ HEX LOCK | 1 |
| 25 | 1C***55 | SCREW | 2 |
| 26 | 74***88 | SCREW HEX; Was 4CM1245 | 2 |
| 27 | 45**28 | SCREW HEX FLNG W/T | 2 |
| 28 | 71***73 | SCREW | 2 |
| 29 | 72***80 | BRACKET, MOUNTING | 1 |
| 30 | 72***81 | BRACKET, MOUNTING | 1 |
| 31 | 72***75 | MOUNT, BRACKET | 1 |
| 32 | 71***17 | MOUNT ENGINE | 1 |
| 33 | 70***96 | PUMP HYDRAULIC; manual controls | 1 |
| 34 | 70***93 | PUMP HYDR TANDEM W/O GEAR PUMP; SJC | 1 |
| 34 | 70******EM | PUMP HYDR TANDEM W/O GEAR PUMP | 1 |
| 35 | 65***92 | WASHER | 1 |
| 36 | 71***58 | SPRING | 1 |
| 37 | 71***58 | WASHER | 3 |
| 38 | 72***80 | ARM TENSIONER; W/ 7141853 & 7157718 - Was 7167164 | 1 |
| 38 | 71***18 | SPRING | 1 |
| 38 | 71***53 | BUSHING IGLIDE | 1 |
| 39 | 71***65 | TENSIONER WHEEL; W/Ref. 48-53 | 1 |
| 40 | 71***10 | SLEEVE | 1 |
| 41 | 72***03 | BRACKET; Was 7267872 | 1 |
| 42 | 72***87 | SLEEVE | 1 |
| 43 | 73***86 | PIN STRAIGHT; Was 14J3728 | 1 |
| 44 | 53**12 | NUT HX THDLK PREAPPL | 1 |
| 45 | 59***35 | SCREW HX FLNG W/T8.8; Was 7CM12100 | 1 |
| 46 | 3G****10 | SCREW; Was 7CM12110 | 1 |
| 47 | 7C****40 | BOLT | 1 |
| 48 | ---- | BEARING; NLA - Order Ref. 39 | 2 |
| 49 | ---- | SEAL; NLA - Order Ref. 39 | 2 |
| 50 | ---- | BUSHING; NLA - Order Ref. 39 | 1 |
| 51 | ---- | SPACER; NLA - Order Ref. 39 | 2 |
| 52 | ---- | IDLER, MACHINED; NLA - Order Ref. 39 | 1 |
| 53 | ---- | RING, SNAP; NLA - Order Ref. 39 | 1 |
| 54 | 72***04 | WEIGHT TUNED PM | 1 |
