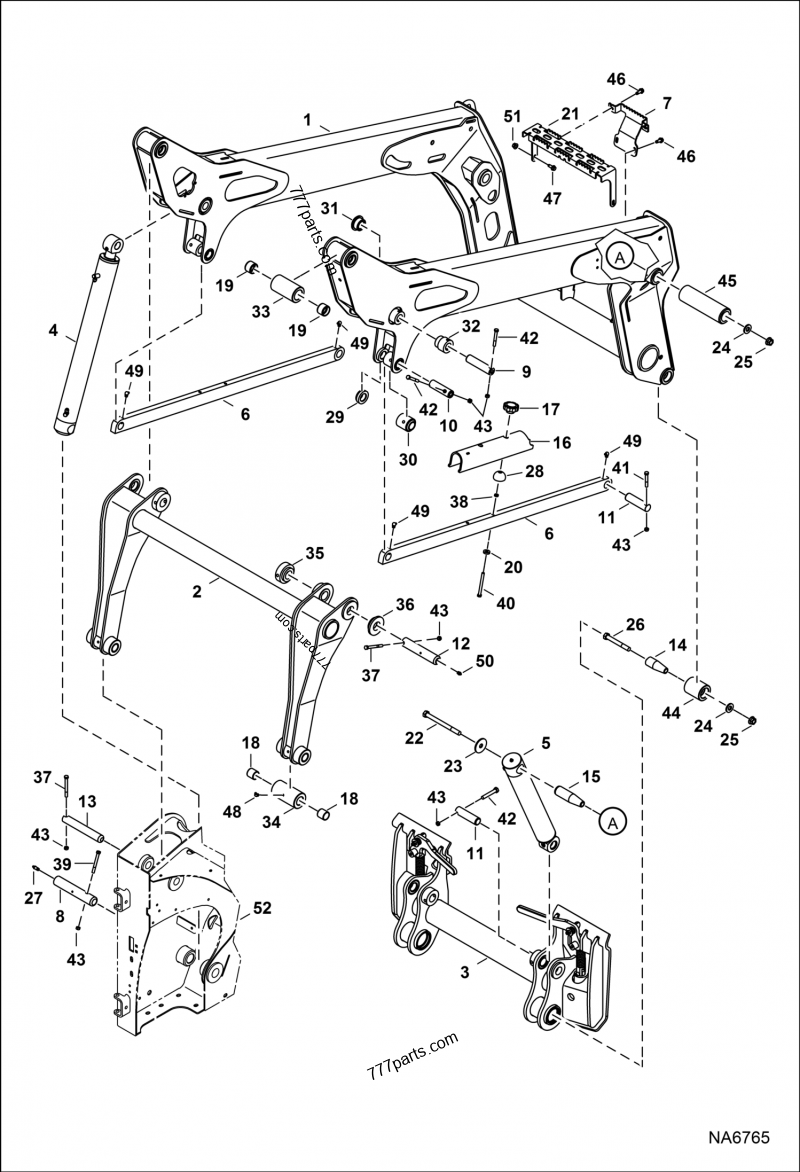

BOBCAT S530 Lift Arm & BOB-TACH

#	Part No.	Description	Qty
1	73***11	ARM LIFT ASSY; Use W/Ref. 15 (7336086 pivot pin), 7362657 tilt cylinder & 7362656 lift cylinder	1
1	71***17	LIFT ARM; Use W/Ref. 15 (7148031 pivot pin), 7151185 tilt cylinder & 7256068 lift cylinder	1
2	73***77	LINK LIFT ARM H ASSY; Was 7145418	1
3	----	BOB-TACH ASSY	1
4	----	CYLINDER, LIFT	2
5	----	CYLINDER, TILT	2
6	72***05	LINK; LH - Was 7145456	1
6	72***05	LINK; RH - Also Order (2) each of Ref. 20, 28, 38 & 40 for mounting Ref. 16 lift arm stop - Was 7145456	1
7	72***45	BRACKET; Was 7232057	1
8	71***70	PIN, PIVOT	2
8	73***17	PIN PIVOT; 7366517 stamped on end of pin	1
9	67***07	PIN, PIVOT	2
10	67***39	PIN, PIVOT	2
11	65***54	PIN, PIVOT	4
12	71***27	PIN, PIVOT	2
13	72***79	PIN, PIVOT	2
14	71***90	PIN, PIVOT TAPERED	2
15	71***31	PIN, PIVOT TAPERED; Use W/Ref. 1 (7145417 lift arm) & 7151185 tilt cylinder	2
15	73***86	PIN PIVOT TAPERED; Use W/Ref. 1 (7336811 lift arm) & 7362657 tilt cylinder	2
16	71***58	SUPPORT, LIFT ARM	1
17	66***32	KNOB CLAMPING	2
18	67***62	BUSHING WEAR	4
19	67***97	BUSHING WEAR	4
20	61**83	WASHER	2
21	72***62	STEP LIFT ARM; Was 7251385	1
22	17****20	BOLT	2
23	67***60	WASHER	2
24	27*10	WASHER	4
25	53*10	NUT	4
26	17***80	SCREW	2
27	45*25	FITTING, GREASE	2
28	72***04	DAMPER	2
29	71***44	BUSHING, WELD-ON	2
30	71***43	BUSHING, WELD-ON	2
31	71***53	BUSHING, WELD-ON	2
32	71***52	BUSHING, WELD-ON	2
33	72***06	BUSHING, WELD-ON; W/Ref. 19	2
34	72***05	BUSHING, WELD-ON; W/Ref. 18	2
35	71***55	BUSHING, WELD-ON	2
36	71***54	BUSHING, PIVOT	2
37	17**60	BOLT	4
38	7D6	NUT	2
39	17**56	BOLT	2
40	71***20	BOLT	2
41	17**40	BOLT	2
42	17**44	BOLT	6
43	85D6	NUT PRETRQ HEX LOCK	14
44	71***39	BUSHING, WELD-ON	2
45	73***20	BUSHING, WELD-ON; Was 7139373	2
46	84***16	SCREW THD ROLLING TT	3
47	17**16	BOLT 5	2
48	11*15	FTG GREASE STRAIGHT	2
49	12*15	FTG GREASE 90	4
50	10*25	FTG GREASE STRAIGHT	2
51	53D6	NUT; Was 97D6	2
52	----	MAIN FRAME	1
