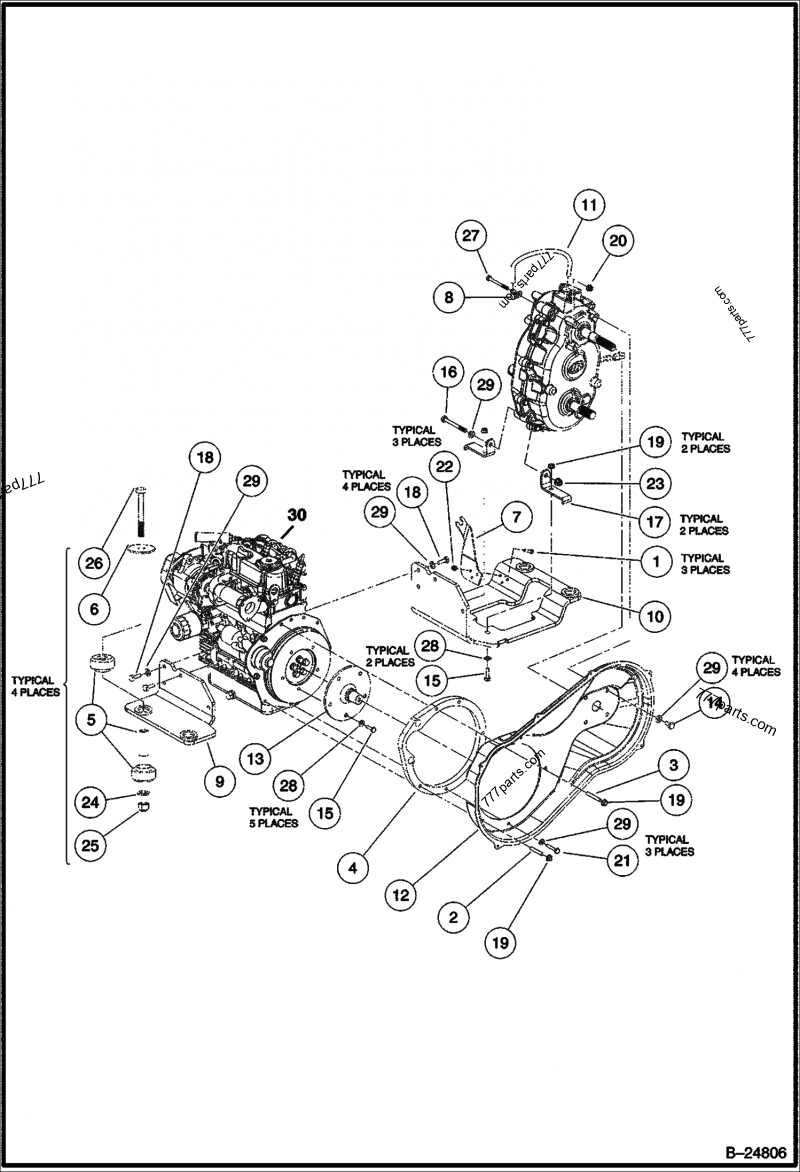

BOBCAT 2200 Engine Mounting (Diesel) (Kubota D722)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 10*****CC | SCREW | 3 |
| 2 | 10*******CC | STUD, M8-1.25 X 50MM 2-ENDED | 1 |
| 3 | 10*******CC | STUD | 1 |
| 4 | 10*******CC | SPACER ENGINE DIESEL | 1 |
| 5 | 10*******CC | ISOLATOR | 4 |
| 6 | 10*******CC | WASHER; NLA - Was 102370601CC | 4 |
| 7 | 10*******CC | BRACKET | 1 |
| 8 | 10*******CC | CLAMP | 1 |
| 9 | 10*******CC | MOUNT ENGINE; Was 102414701CC | 1 |
| 10 | 10*******CC | MOUNT ENG RH | 1 |
| 11 | 10*******CC | HOSE VENT | 1 |
| 12 | 10*******CC | COVER CVT | 1 |
| 13 | 10*******CC | SHAFT CVT ADAPTER | 1 |
| 14 | 10*******CC | BOLT | 4 |
| 15 | 10*******CC | BOLT | 7 |
| 16 | 10*******CC | BOLT; Was 102490501CC | 1 |
| 17 | 10*******CC | BRACKET; NLA - Was 102494401CC | 2 |
| 18 | 10*******CC | BOLT | 8 |
| 19 | 10*******CC | NUT; Was 102617001CC | 7 |
| 20 | 10*******CC | NUT | 1 |
| 21 | 10*******CC | BOLT | 3 |
| 22 | 10*******CC | NUT | 3 |
| 23 | 10*******CC | NUT | 1 |
| 24 | 96******CC | WASHER; NLA - Was 96701412CC | 4 |
| 25 | 10*******CC | LOCKNUT; NLA - Was 102740401CC | 4 |
| 26 | 96******CC | BOLT; NLA - Was 96704721CC | 4 |
| 27 | 96******CC | BOLT | 1 |
| 28 | 96******CC | WASHER | 10 |
| 29 | 96******CC | WASHER | 12 |
| 30 | 10*******CC | ENG, KUBOTA D722 T2.; Kubota D722 - Order replacement engine - 103856001CC - Was 103856001CC | 1 |
