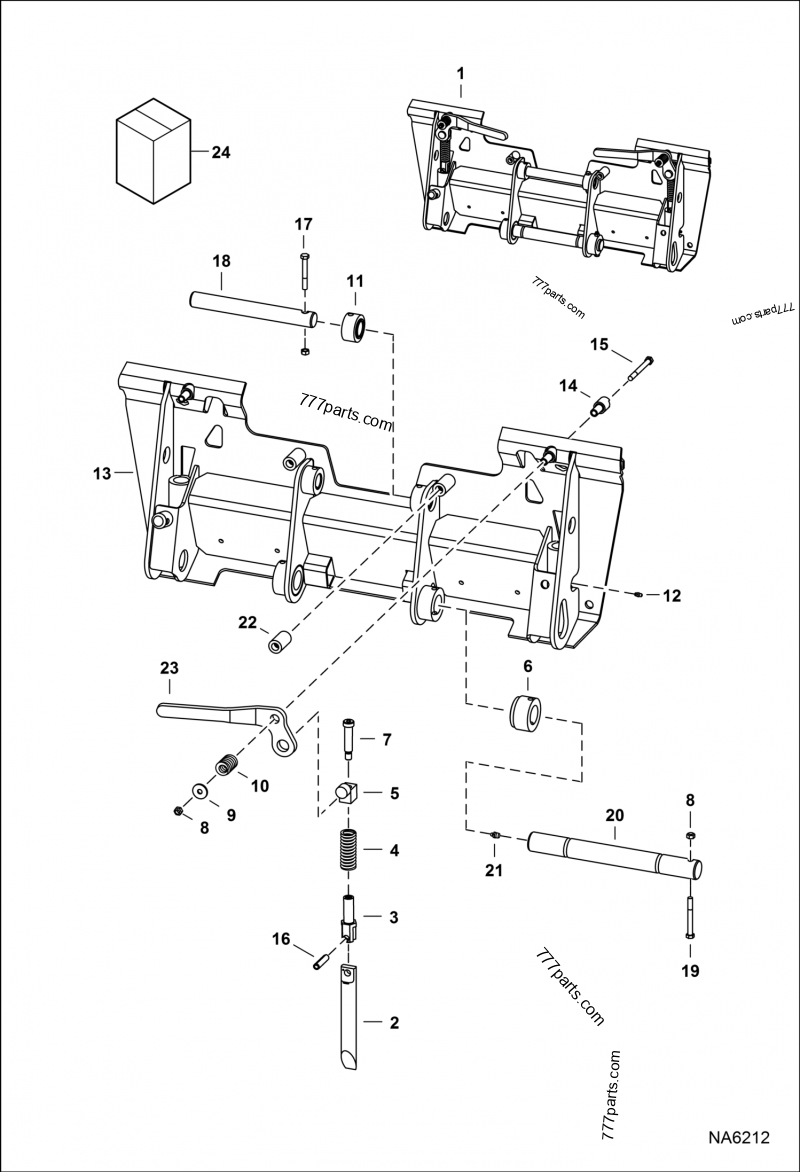

BOBCAT 5600 BOB-TACH (Non-Production)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 71***25 | BOB-TACH; NLA - Ref. 2-23 - Was 7145525 | 1 |
| 2 | 67***91 | WEDGE, BOB-TACH | 2 |
| 3 | 72***89 | PIVOT, WEDGE; 156 mm (6.15") long - Use W/Ref. 7 (7255136 screw) | 2 |
| 4 | 65***53 | SPRING COMPRESSION | 2 |
| 5 | 67***40 | PIVOT, WEDGE | 2 |
| 6 | 68***85 | BUSHING; weld-on | 2 |
| 7 | 72***36 | SCREW, SOCKET HEAD; 28,58 mm (1.125") long - Use W/Ref. 3 (7252989 pivot) | 2 |
| 8 | 85D6 | NUT PRETRQ HEX LOCK | 4 |
| 9 | 61**21 | WASHER | 2 |
| 10 | 67***40 | SPRING COMPRESSION | 2 |
| 11 | 68***45 | BUSHING; weld-on | 2 |
| 12 | 10*35 | FTG GREASE STRAIGHT | 2 |
| 13 | ---- | FRAME; NSS | 1 |
| 14 | 67***58 | BUSHING MOUNT | 2 |
| 15 | 17**60 | BOLT | 2 |
| 16 | 14***32 | PIN CSPR STRAIGHT; Was 7277777 | 2 |
| 17 | 17**44 | BOLT | 1 |
| 18 | 68***22 | PIN LINK | 1 |
| 19 | 17**52 | BOLT | 1 |
| 20 | 68***21 | PIN BOOM | 1 |
| 21 | 10*25 | FTG GREASE STRAIGHT | 2 |
| 22 | 71***94 | SPACER | 2 |
| 23 | 67****3P | LEVER BOB-TACH; LH | 1 |
| 23 | 67****4P | LEVER BOB-TACH; RH | 1 |
| 24 | 73***98 | KIT BOB-TACH UPPER; Ref. 8-10, 14 & 15 | 1 |
| 24 | 73***93 | KIT PIVOT BOB-TACH; NLA - Ref. 3 (6704248 pivot), 7 (6728473 bolt) & 16 (14J5032 pin) - Order 7302293 kit - Was 7302293 | 1 |
| 24 | 73***93 | KIT PIVOT BOB-TACH; Ref. 3 (7252989 pivot), 7 (7255136 screw) & 16 (7277777 pin) - qty only replaces one side | 1 |
