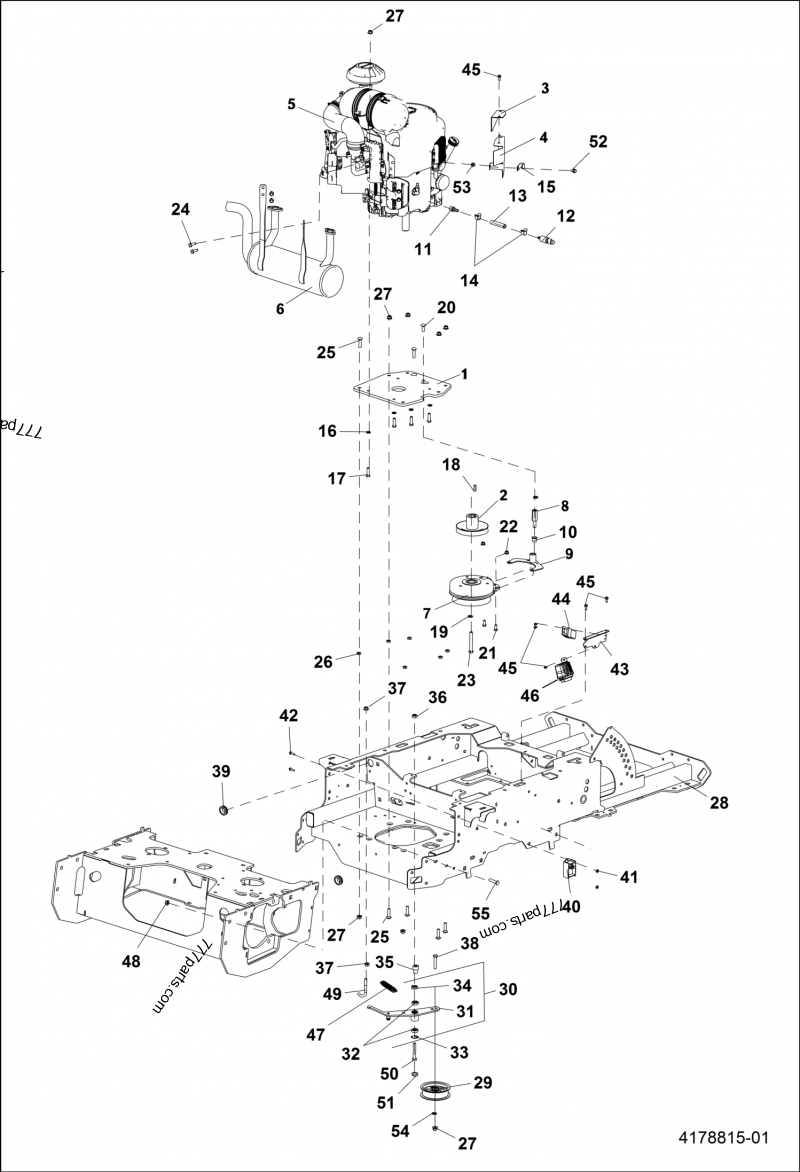

BOBCAT ZT6100 Engine Deck Assembly
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 41******46 | PLATE ENGINE | 1 |
| 2 | 41***04 | PULLEY ENGINE | 1 |
| 3 | 41******46 | BRACKET DEFLECTOR | 1 |
| 4 | 41******46 | DEFLECTOR ENGINE AIR | 1 |
| 5 | ---- | ENGINE FX850V; NSS | 1 |
| 6 | 41***31 | MUFFLER ENGINE | 1 |
| 7 | 41***89 | CLUTCH ELECTRIC | 1 |
| 8 | 41***06 | PIN CLUTCH | 1 |
| 9 | 41******46 | CLUTCH STOP WELDMENT | 1 |
| 10 | 38****03 | BEARING PLASTIC | 1 |
| 11 | 41*******01 | FITTING BARBED STRAIGHT | 1 |
| 12 | 41***51 | VALVE DRAIN | 1 |
| 13 | 69****03 | HOSE HYDRAULIC | 1 |
| 14 | 88****03 | CLAMP HOSE | 2 |
| 15 | 48****01 | CLIP CABLE | 1 |
| 16 | 64****03 | WASHER LOCK | 4 |
| 17 | 64****16 | BOLT HEX | 4 |
| 18 | 64****12 | KEY SQUARE | 1 |
| 19 | 64****06 | WASHER LOCK | 2 |
| 20 | 64****44 | BOLT CARRIAGE | 1 |
| 21 | 64****54 | BOLT HEX | 2 |
| 22 | 64****02 | NUT NYLON | 2 |
| 23 | 64*****91 | BOLT HEX | 1 |
| 24 | 64*****07 | BOLT FLANGE | 4 |
| 25 | 64****49 | BOLT CARRIAGE | 6 |
| 26 | 64***-6 | NUT HEX | 6 |
| 27 | 64****03 | NUT NYLON | 6 |
| 28 | 41***48 | FRAME W/LABELS | 1 |
| 28 | 41***48 | FRAME W/LABELS; Was 4178861 | 1 |
| 29 | 41***97 | PULLEY IDLER | 1 |
| 30 | 41***48 | ARM IDLER ASSEMBLY; Ref. 31-34 | 1 |
| 31 | 41******46 | ARM IDLER WELDMENT | 1 |
| 32 | 41***04 | BEARING BALL | 2 |
| 33 | 64****40 | RING SNAP | 1 |
| 34 | 41***99 | SEAL RING | 1 |
| 35 | 41***53 | PIN IDLER | 1 |
| 36 | 64****03 | NUT LOCK | 1 |
| 37 | 64***-4 | NUT WELD | 2 |
| 38 | 64****67 | BOLT HEX | 1 |
| 39 | 41***68 | GROMMET RUBBER | 2 |
| 40 | 41***59 | CONTROL CLUTCH | 1 |
| 41 | 64****15 | NUT HEX | 2 |
| 42 | 64****46 | SCREW HEX HEAD | 2 |
| 43 | 41******46 | BRACKET RELAY | 1 |
| 44 | 21***54 | MODULE DELAY | 1 |
| 45 | 64*****33 | BOLT HEX | 9 |
| 46 | 41***66 | HARNESS WIRING | 1 |
| 47 | 41***16 | SPRING EXTENSION | 1 |
| 48 | 64****05 | NUT NYLON | 8 |
| 49 | 41***35 | PIN SPRING | 1 |
| 50 | 64*****09 | BOLT METRIC | 1 |
| 51 | 41***02 | CAP ASSEMBLY | 1 |
| 52 | 64*****01 | BOLT FLANGE | 1 |
| 53 | 64****01 | NUT NYLON | 1 |
| 54 | 64****69 | WASHER FLAT | 1 |
| 55 | 64***-6 | BOLT CARRIAGE | 4 |
