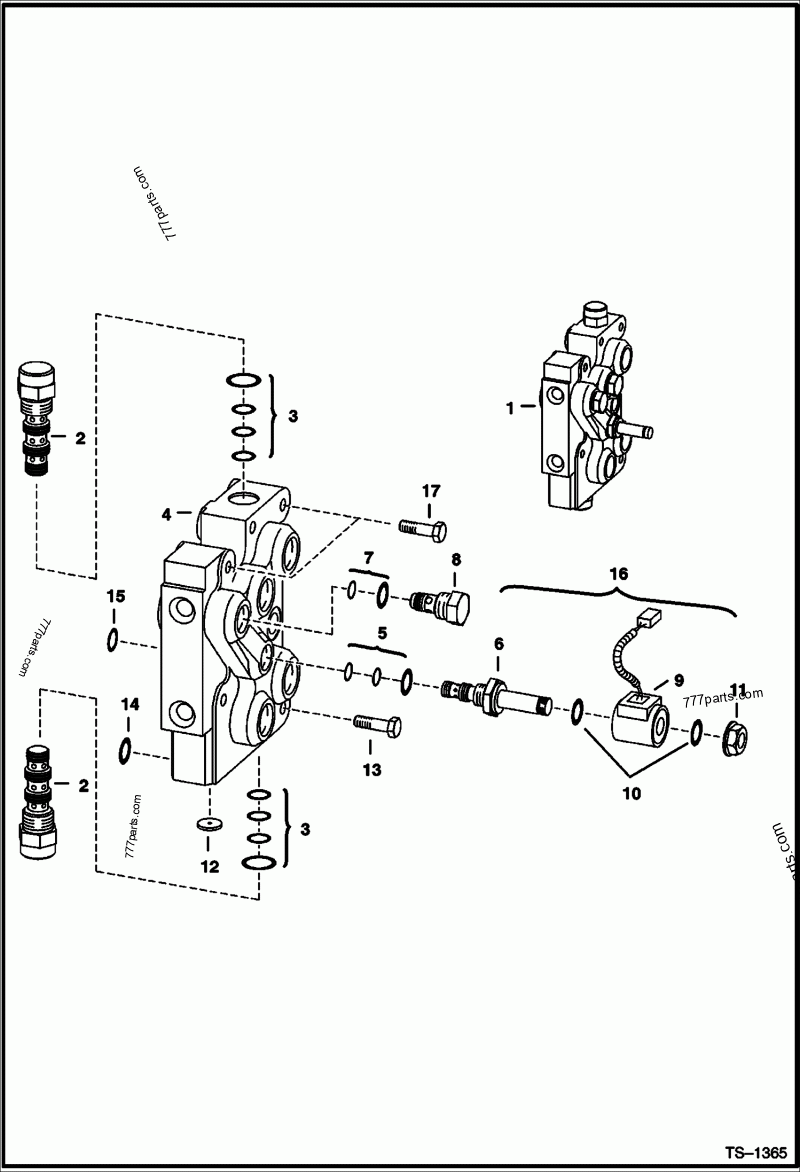

BOBCAT S185 BICS Control Valve (S/N 525211001 - 525214999, 525311001 - 525314999, 525011001 - 525014999, 525111001 - 525114999)
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 72***71 | VALVE, BICS; E series coil compatible - Ref. 2-5, 6 (7272731 stem), 7 & 8 | 1 |
| 1 | 66***71 | VALVE, BICS; NLA - D series coil compatible - Ref. 2-5, 6 (6667687 stem), 7 & 8 - Order 7297071 BICS valve - Ref. 9 (7272732 coil) - Was 6628571 | 1 |
| 2 | 66***39 | VALVE; pilot operated - Was 6668765 | 2 |
| 3 | 66***31 | KIT SEAL; Was 6669734 | x |
| 4 | ---- | BODY; NSS | 1 |
| 5 | 66***32 | KIT SEAL | x |
| 6 | 66***87 | VALVE, STEM SOLENOID; 25,4 mm (1") across nut flat surface - D series coil compatible | 1 |
| 6 | 72***31 | VALVE, SOLENOID; .87" across nut flat surface - E series coil compatible | 1 |
| 7 | 66***33 | KIT SEAL | x |
| 8 | 66***57 | VALVE CHECK; filter | 1 |
| 9 | 72***32 | COIL SOLENOID ASSEMBLY; E series - two red wires | 1 |
| 9 | 66***25 | COIL, SOLENOID 08-12; D series - one red & one black wire - BICS | 1 |
| 9 | 66***88 | COIL; NLA - pwm - Ref. 10 & 11 - Was 6667688 | 1 |
| 10 | 54****28 | O-RING; pwm | 2 |
| 11 | 66***20 | NUT; D series coil compatible | 1 |
| 11 | 70***47 | NUT; E series coil compatible | 1 |
| 12 | 66***91 | ORIFICE | 1 |
| 13 | 43**32 | BOLT; Use 6 bolts to mount down valve body | 6 |
| 13 | 43**32 | BOLT; Use W/Ref. 17 | 4 |
| 14 | 55**12 | O-RING | 4 |
| 15 | 55**04 | O-RING | 1 |
| 16 | 66***71 | VALVE, CARTRIDGE; NLA - Ref. 5, 6 (6667687 stem), 9 (6671025 coil), 10 & 11 (6668820 nut) - Was 6672471 | 1 |
| 16 | 73***52 | VALVE, CARTRIDGE; Ref. 5, 6 (7272731 stem), 9 (7272732 coil), 10 & 11 (7020647 nut) | 1 |
| 17 | 43**24 | BOLT; Use W/Ref. 13 | 2 |
