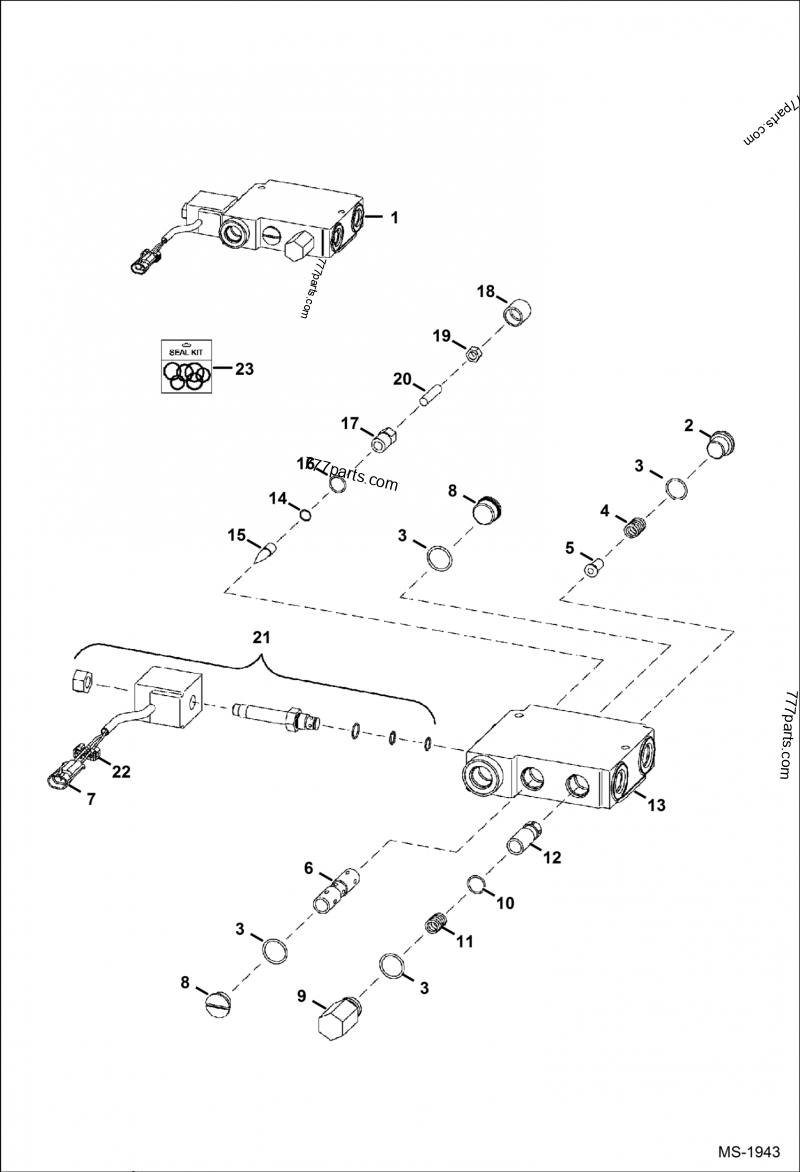

BOBCAT 763 Bucket Positioning Valve
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 66***59 | VALVE, BPV; white - W/solenoid - Ref. 2-23 | 1 |
| 1 | ---- | VALVE; NLA - W/O solenoid - Order 6673959 valve - If loader is not equipped with an on/off switch also order 6647784 plug, 79K10 O-ring, 6647785 spring, & 6647783 load check- Was 6666341 | 1 |
| 2 | 66***84 | PLUG; W/Ref. 3 | 1 |
| 3 | 79*10 | O RING 10; Was 79K8 | 4 |
| 4 | 66***85 | SPRING | 1 |
| 5 | 66***83 | LOADCHECK | 1 |
| 6 | ---- | SPOOL; NSS | 1 |
| 7 | 66***79 | CONNECTOR METRI PACK; 2-pin | 1 |
| 8 | 66***43 | PLUG; W/Ref. 3 - Was 6647780 | 2 |
| 9 | 66***76 | PLUG; W/Ref. 3 | 1 |
| 10 | 66***80 | SNAP RING | 1 |
| 11 | 66***94 | SPRING | 1 |
| 12 | ---- | SPOOL; NSS | 1 |
| 13 | ---- | BODY; NSS | 1 |
| 14 | 66***77 | SEAL,O-RING | 1 |
| 15 | 66***77 | PIN | 1 |
| 16 | 79K6 | O RING 10; Was 6634874 | 1 |
| 17 | 66***78 | CAP | 1 |
| 18 | 66***76 | COVER | 1 |
| 19 | 8D4 | NUT; Was 6631561 | 1 |
| 20 | 66***93 | SCREW | 1 |
| 21 | 66***63 | VALVE, SOLENOID | 1 |
| 21 | 66***27 | NUT | 1 |
| 21 | 66***34 | KIT SEAL | 1 |
| 21 | 66***81 | Coil; W/Ref. 7 & 22 - Was 6674331 | 1 |
| 21 | 66***80 | Cartridge; Was 6676545 | 1 |
| 22 | 66***80 | LOCK METRI PACK; Use W/ 2-pin connector | 1 |
| 23 | 66***86 | KIT SEAL; Ref. 3, 14, 16, & 18 | 1 |
